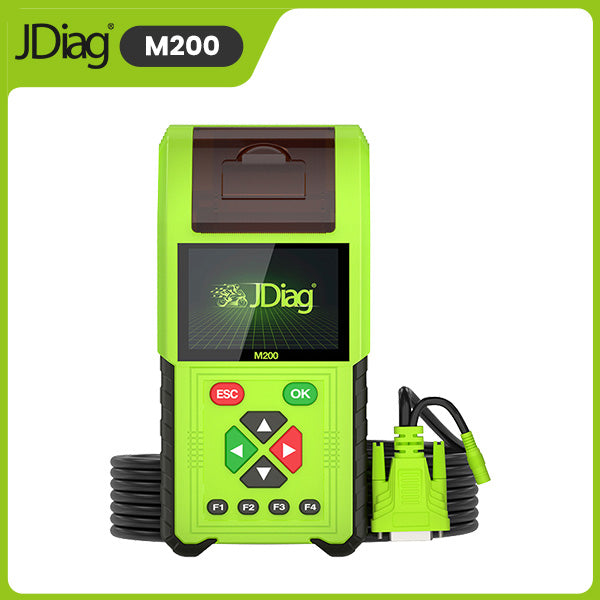

JDiag M200 Motorcycle obd 2 scanner, Motorcycle system diagnostic & battery tester, WiFi 2.4GHz, Injector Test/Clean/Signal Detection, Relay Test

JDiag M200 is a newly developed and upgraded intelligent motorcycle diagnostic instrument based on M100 and M100Pro. The  M200 is a new generation of handheld motorcycle diagnostic instruments equipped with dual system testing: motorcycle diagnostic system and battery testing system.

Support Motorcycle List：

OBD II, ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI,  BMW, BRIXTON, BOMBARDIER, CFMOTO, HARTFORD, HONDA, HYOSUNG, HERO, INDIAN, KAWASAKI, KTM, KYMCO, MODENAS, PGO, PIAGGIO, ENFIELD, SUZUKI, SYM, TVS, TRIUMPH, VESPA, YAMAHA, YIBEN.

* Please contact us to inquire about model coverage before purchasing: service@jdiagstore.com

Supported Languages：

English, Chinese Traditional, Spanish, French,Cambodian, Thai, Turkish, Vietnamese, Indonesian, Portuguese, Japanese, Korean, German.

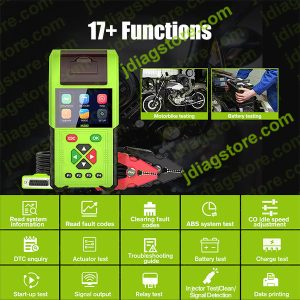

JDiag M200 has 17 functions, including: Read system information,  Freeze data, Battery testing, Clear fault codes, ABS system testing, Charging test, DTC query, CO idle speed adjustment, Start testing, actuator testing, etc.

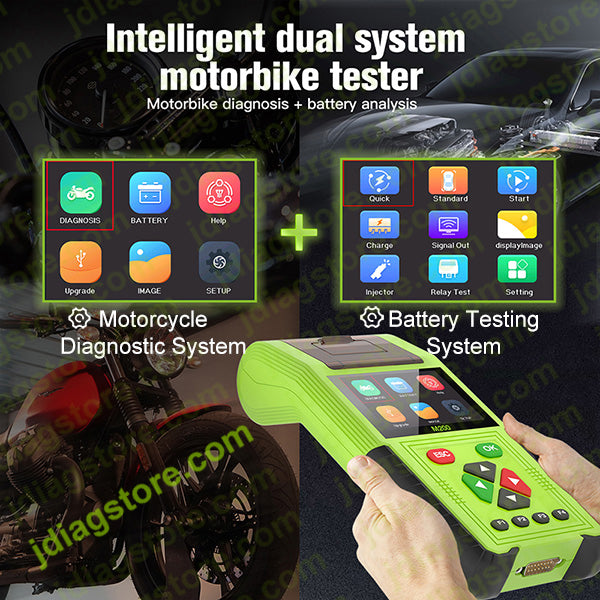

New Upgrade Features

Motorcycle Diagnostic System：Read Fault Codes, View Live Sensor Data, Perform Active Tests, etc.

Battery Testing System: Cranking, Charging System Tests, and Battery Load Test.

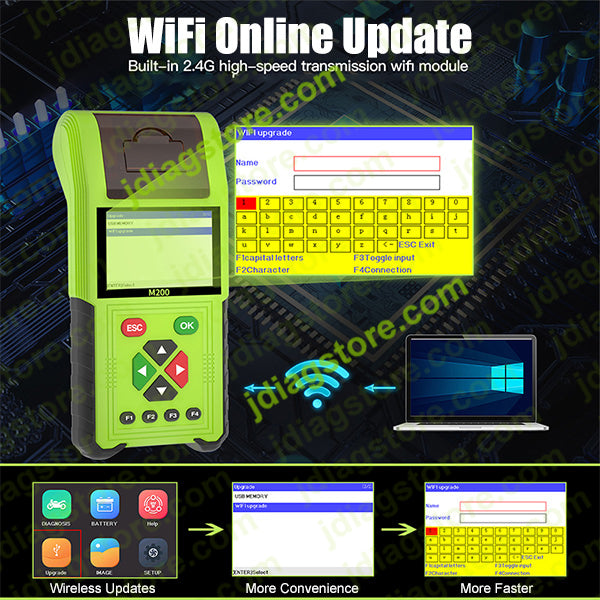

WiFi Online Update: JDiag M200 built-in 2.4GHz high-speed transmission WiFi module, online cloud service automatic upgrade

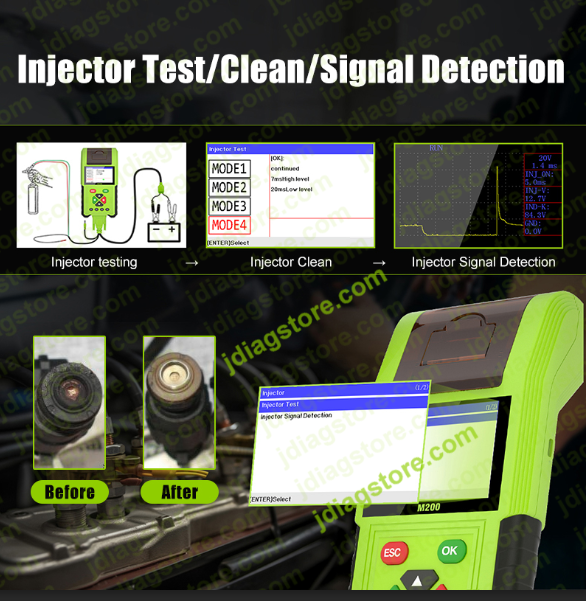

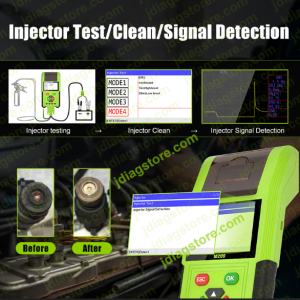

Injector Test: Diagnosis of motorcycle injector clogging and poor performance.

Injector Clean: Clean injectors of buildup or deposits.

Injector Signal Detection: Identify any problems with injector signal transmission.

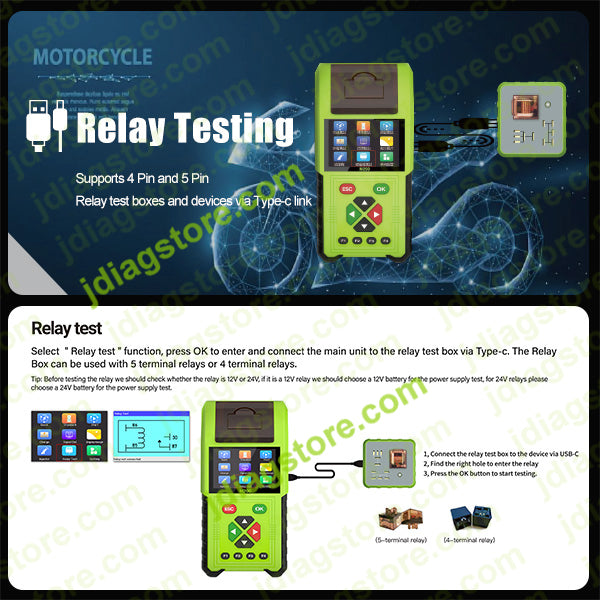

Relay Test: Test the operation of the electrical relays in motorcycle’s electrical system, such as the fuel pump, ignition system, and lights.

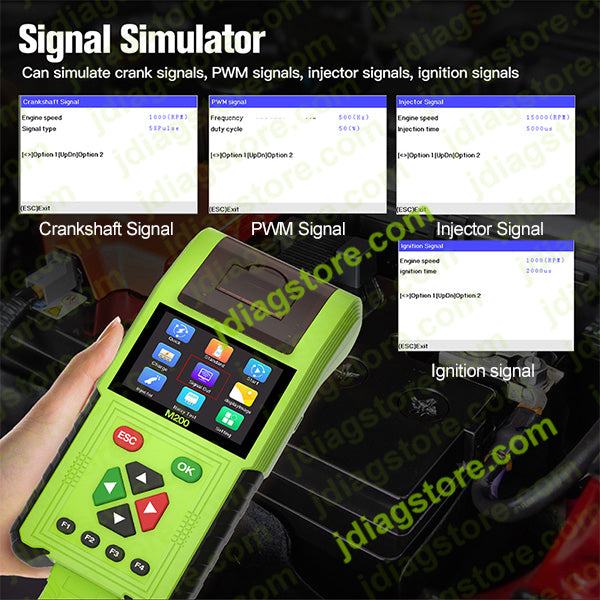

Crankshaft Signal:  It is used by the ECM to determine when to fire the spark plugs and inject fuel into the cylinders.

PWM Signal: This signal is a pulse-width modulated signal that is used by the ECM to control various components such as the fuel pump and idle air control valve.

Injector Signal: This signal is used by the ECM to trigger the fuel injectors at the correct time during the engine cycle.

Ignition Signal: This signal is used by the ECM to trigger the ignition coils, which in turn produce the high voltage needed to ignite the fuel/air mixture in the cylinders.

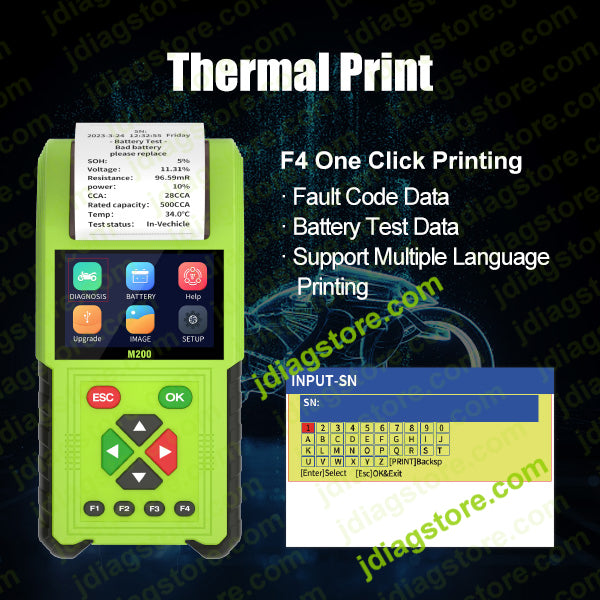

Thermal Print Diagnostic Data

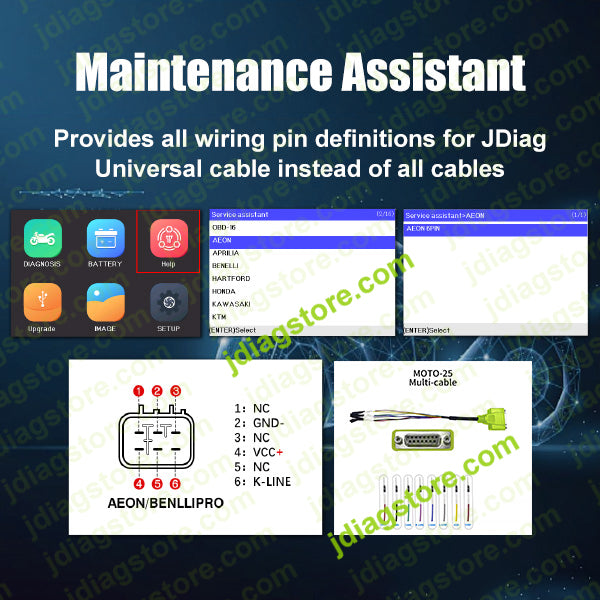

Provides all JDiag wiring pin definitions

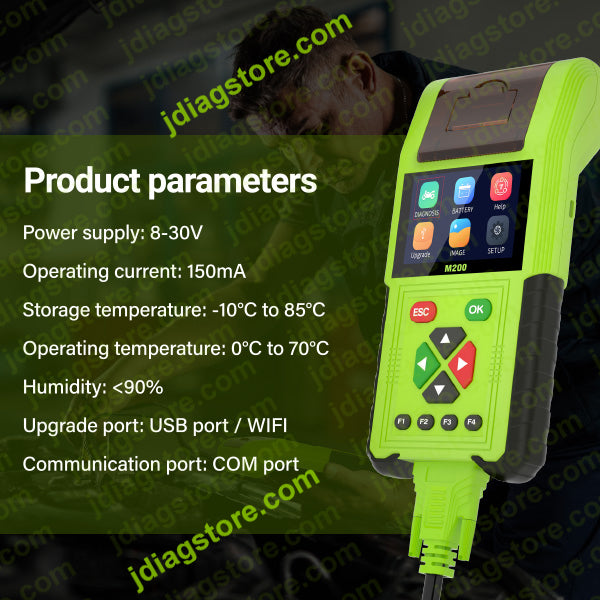

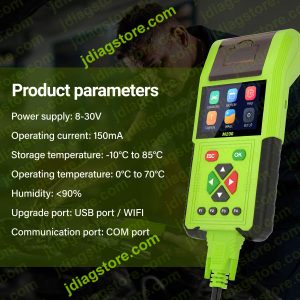

Product Parameters

Power Supply: 8-30V

Working current：150mA

Storage temperature：-10-85°C

Working temperature：0-70℃

Humidity：<90%

upgrade port：USB/WiFi

communication port：COM

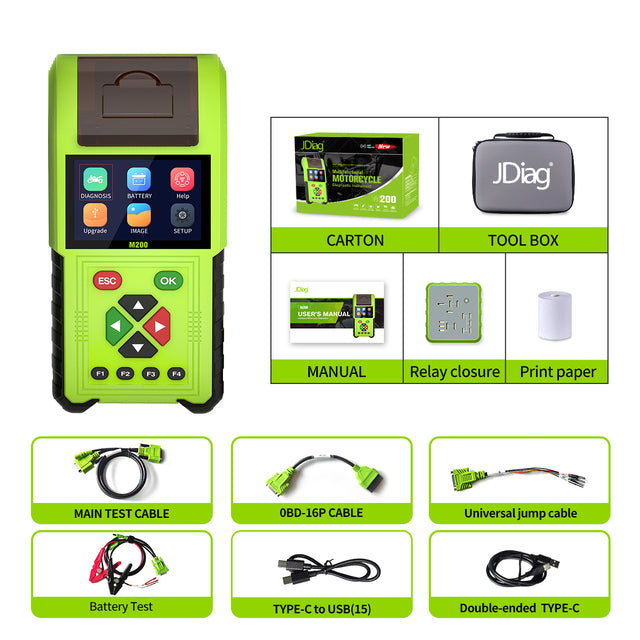

M200 OBD Version

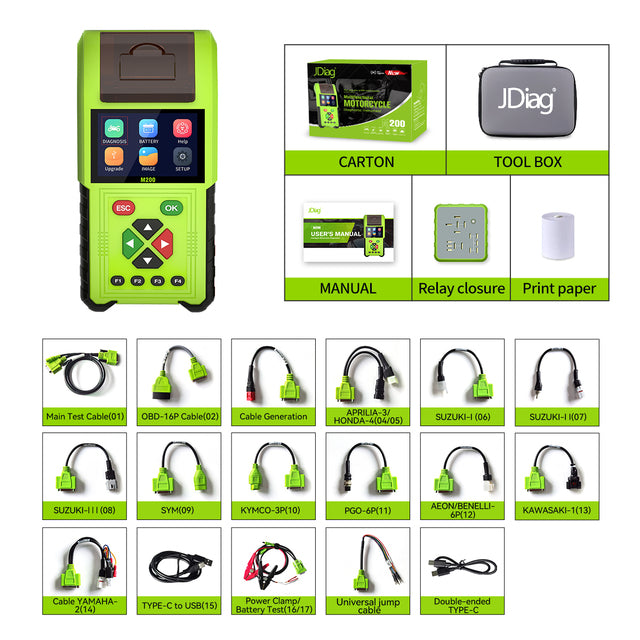

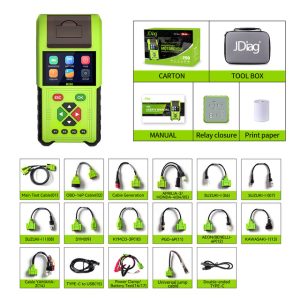

M200 Standard Version

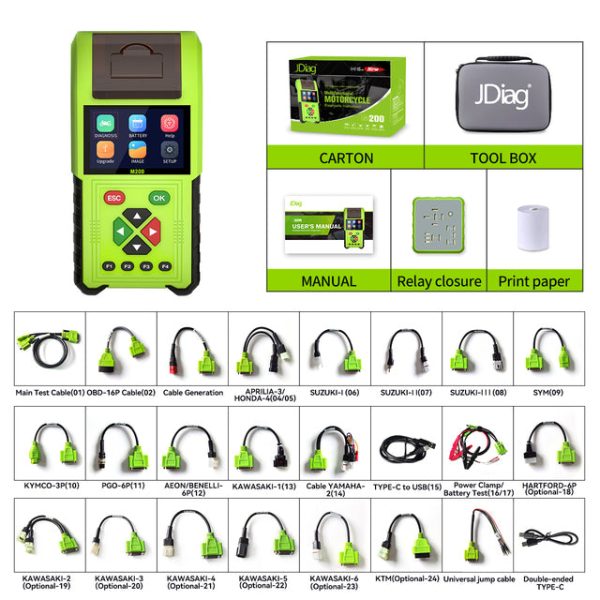

M200 Full Version

If you have any questions about the price, features of the JDiag M200, please feel free to contact us： service@jdiagshop.ntesmail.com
