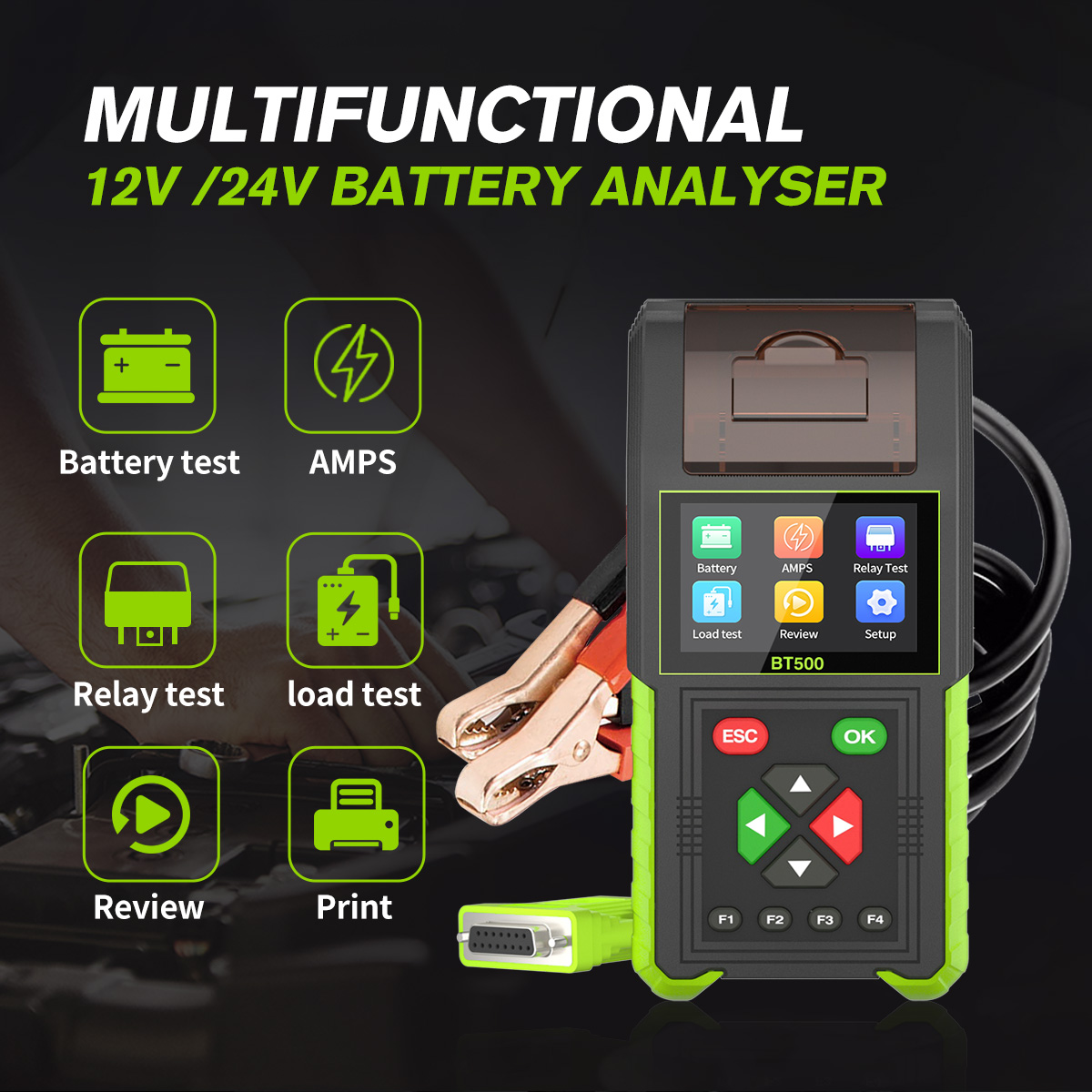

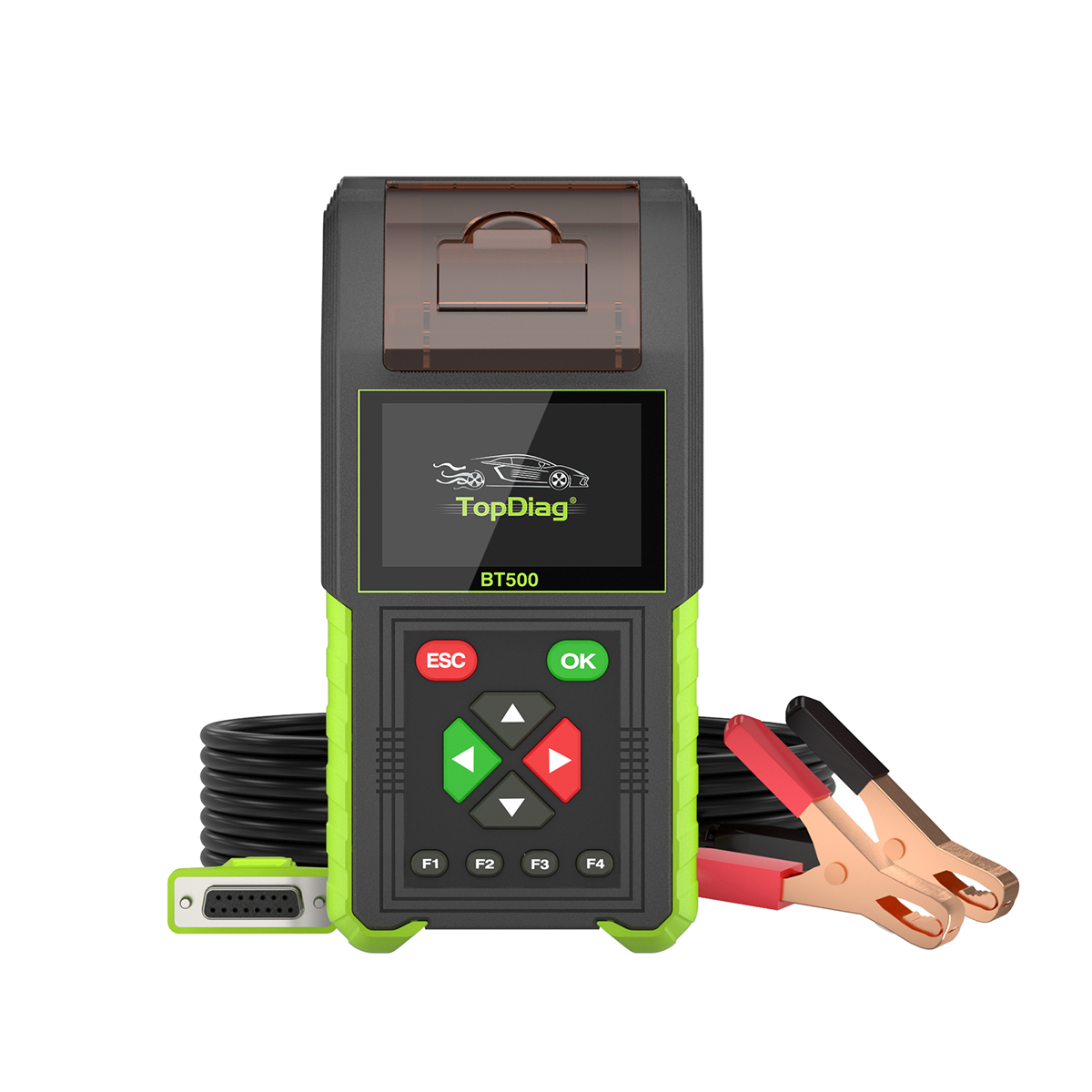

Topdiag BT500 Multi-Function Battery Analyzer

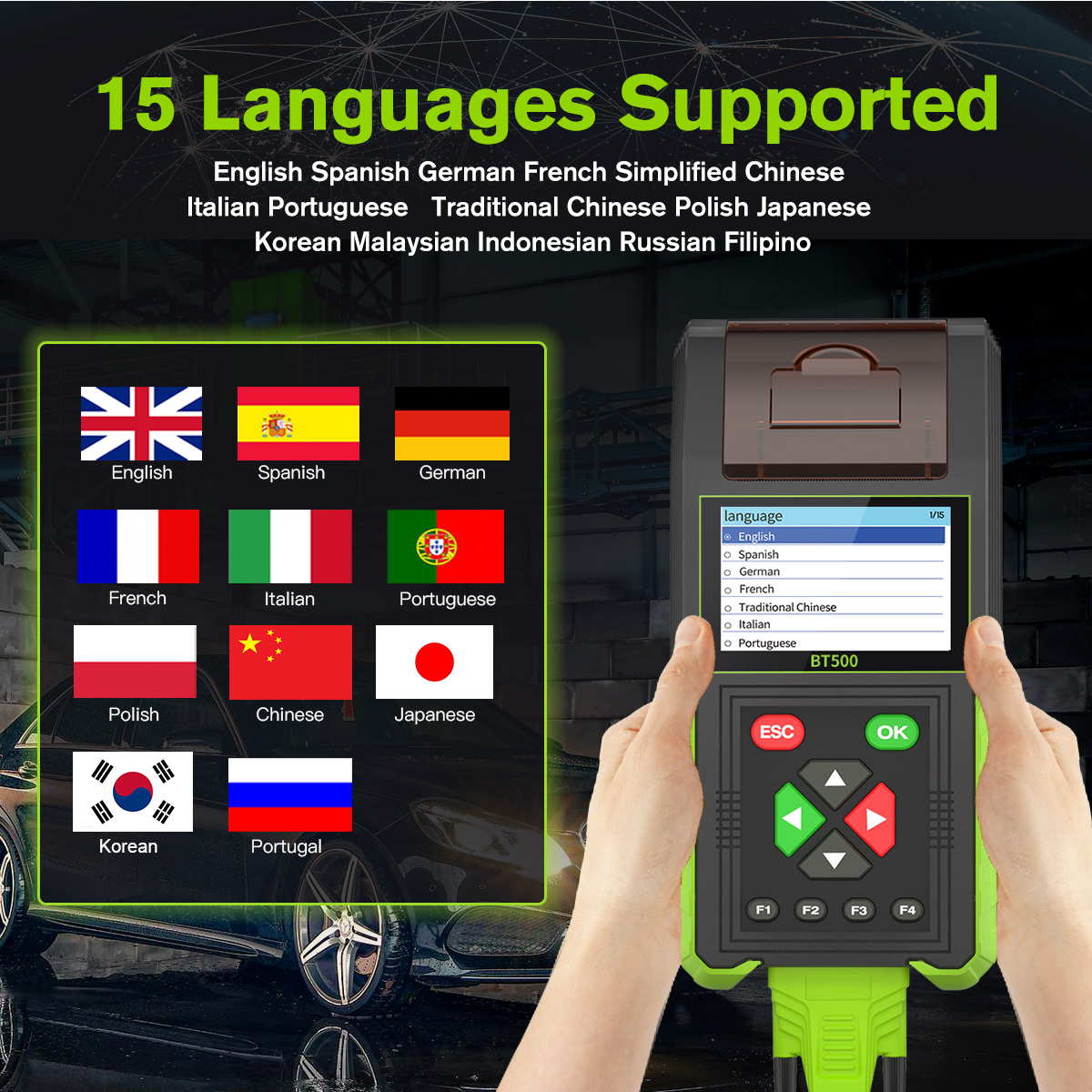

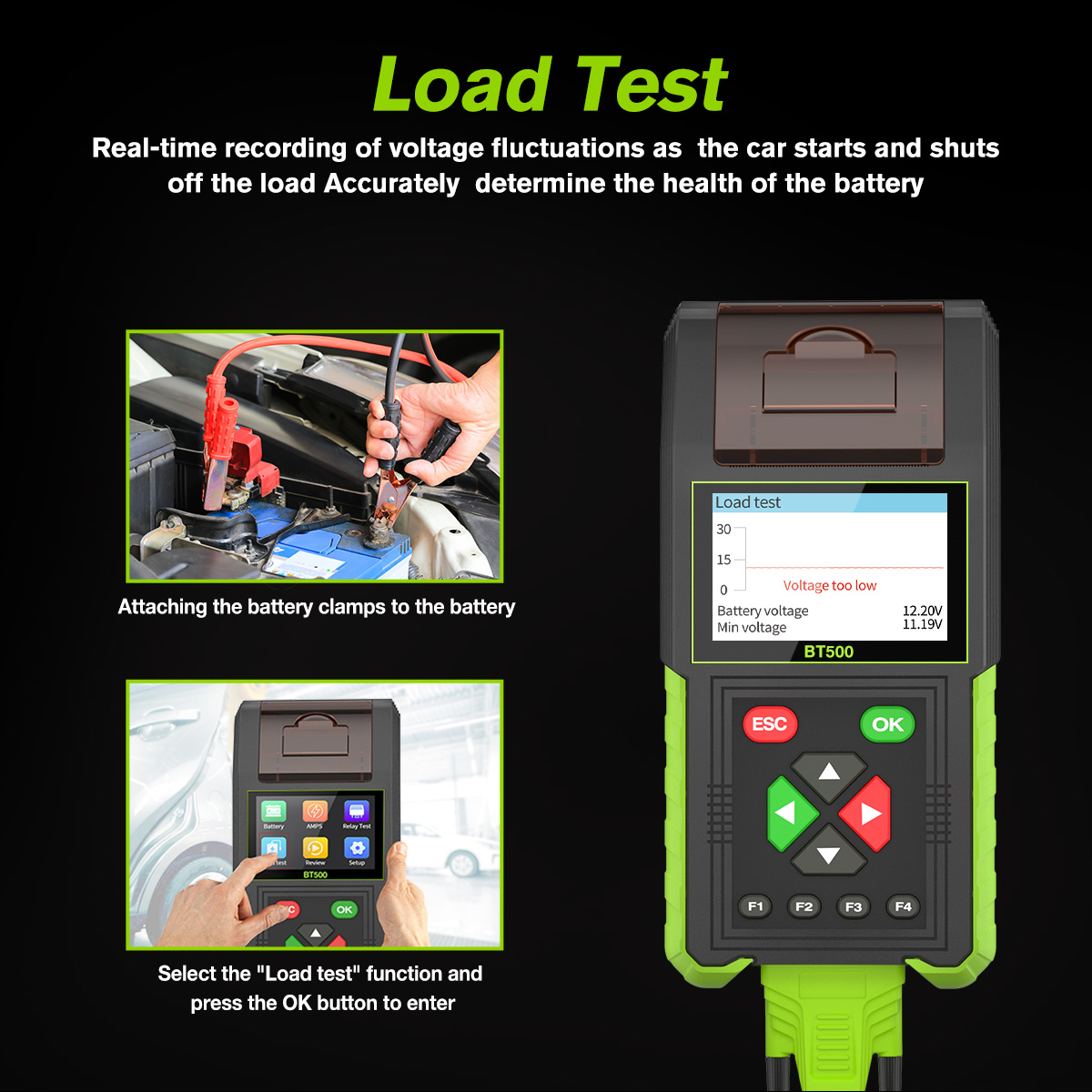

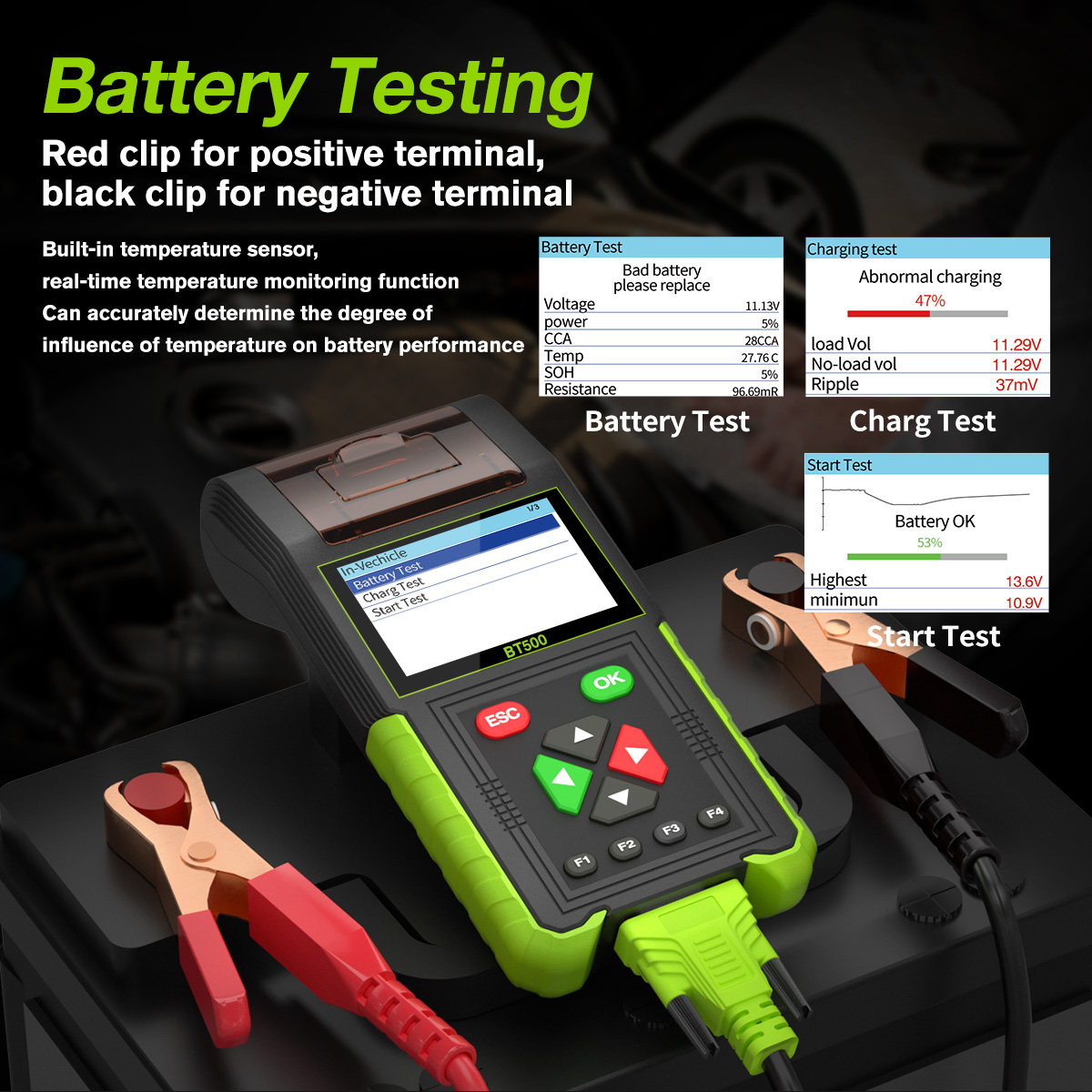

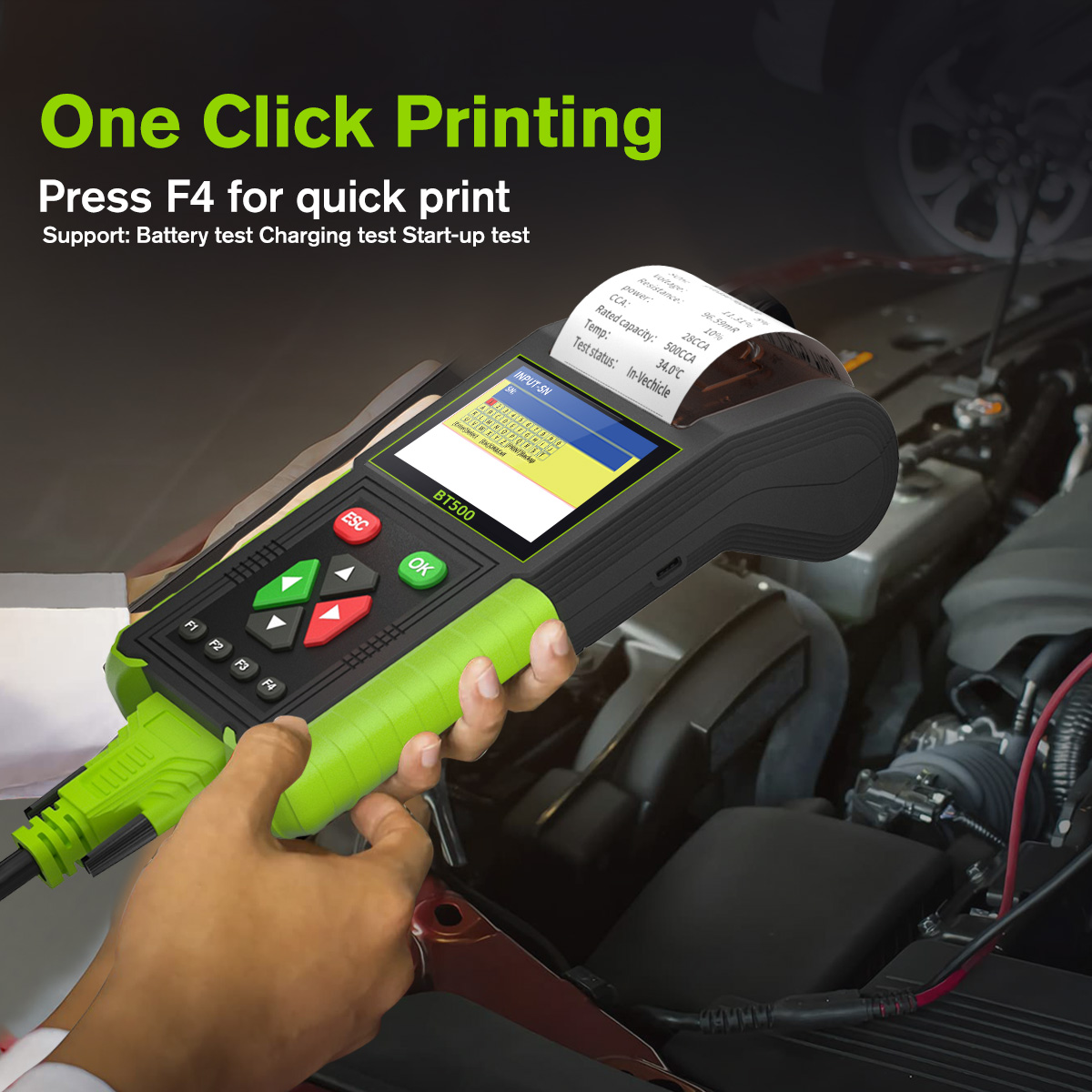

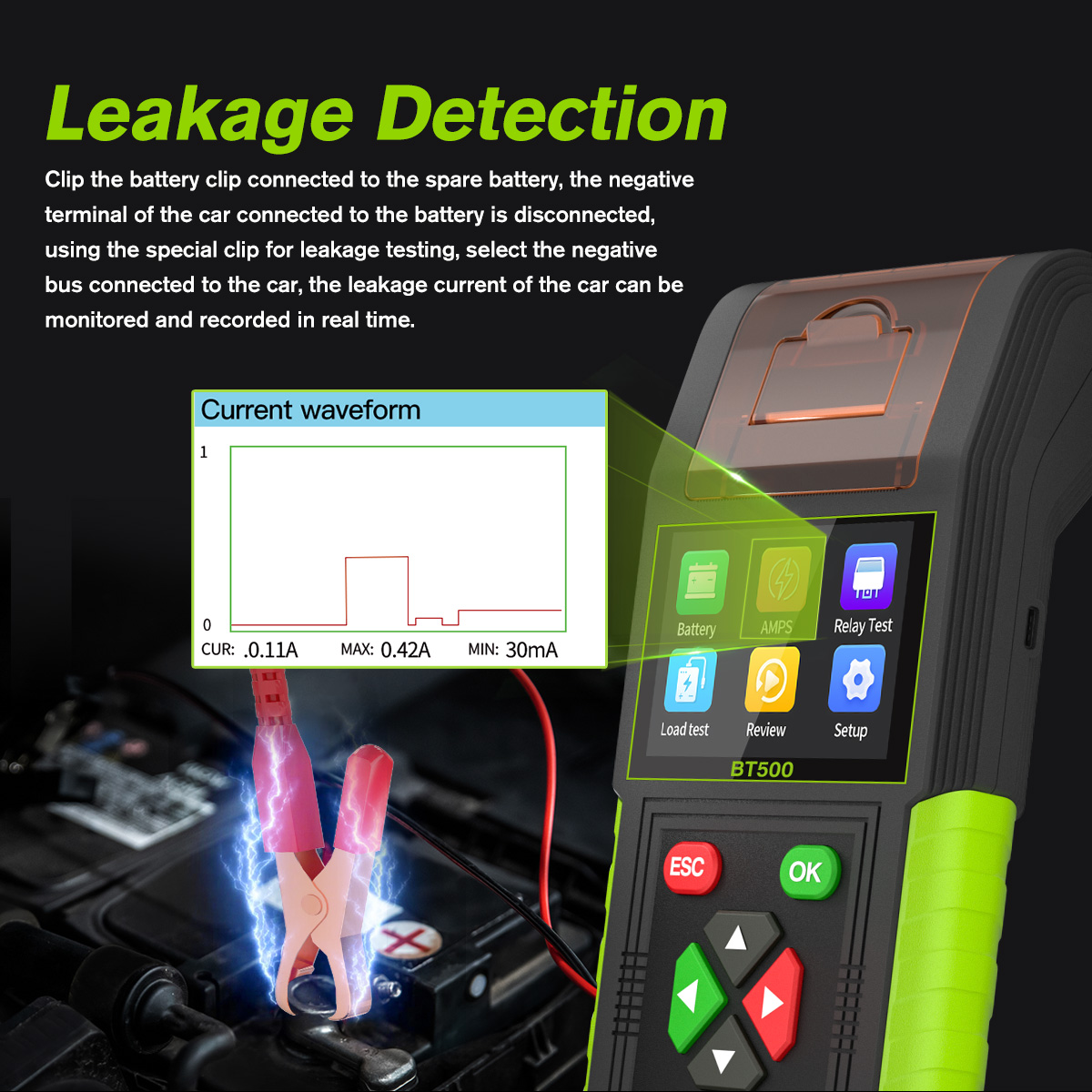

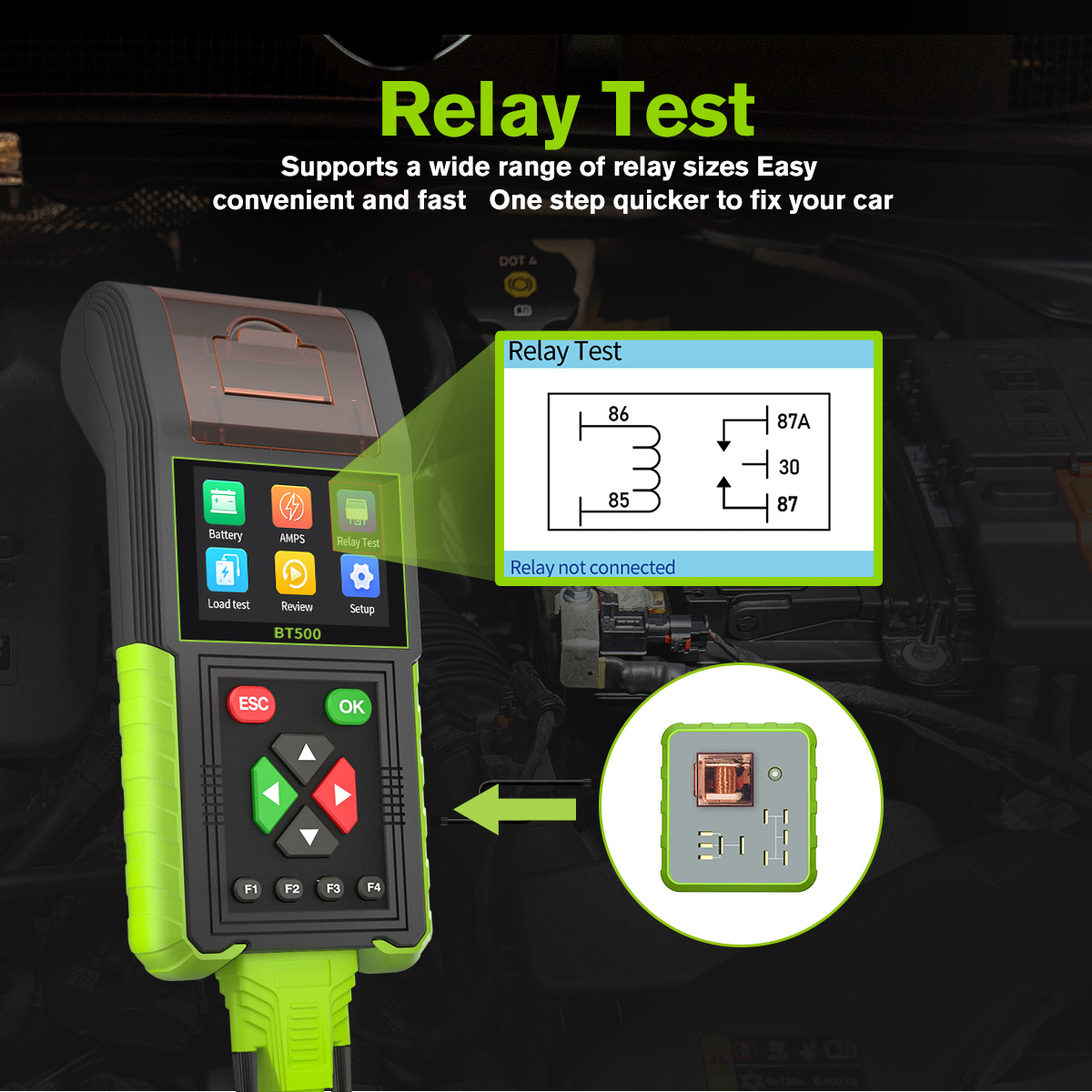

The BT500 represents the next generation of multifunctional battery analyzers, featuring a premium, sophisticated design and enhanced functionality. Its large 3.5-inch display ensures clear visibility, while the built-in temperature sensor continuously monitors ambient conditions for more precise testing results. Newly added data printing capabilities complement existing features including leakage current detection, relay testing, load testing, charging system evaluation, and starting system assessment. Supports language switching. Power clamp leads, leakage detection leads

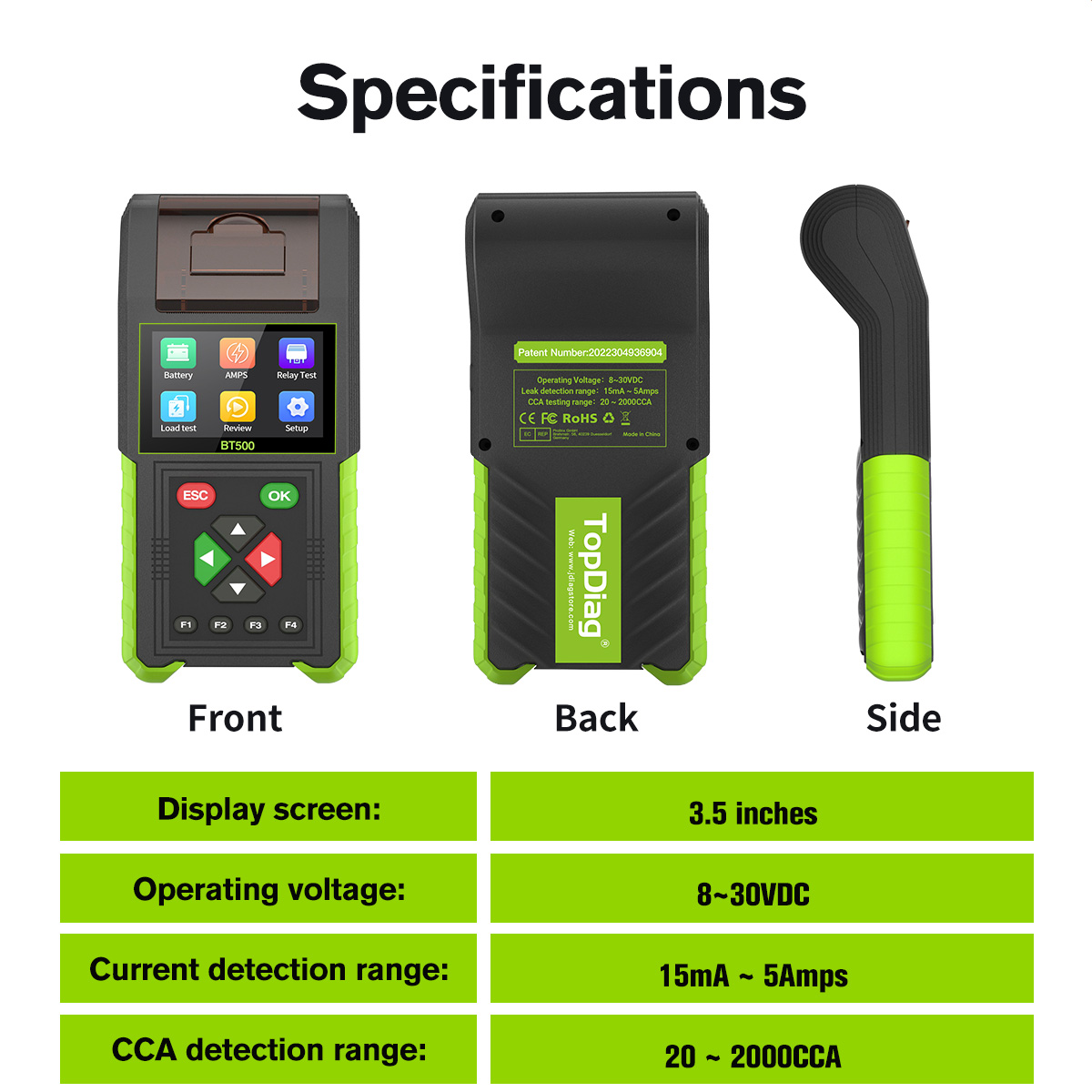

Operating Voltage: 8-30VDC

Leakage Current Detection Range: 15mA ~ 5Amps

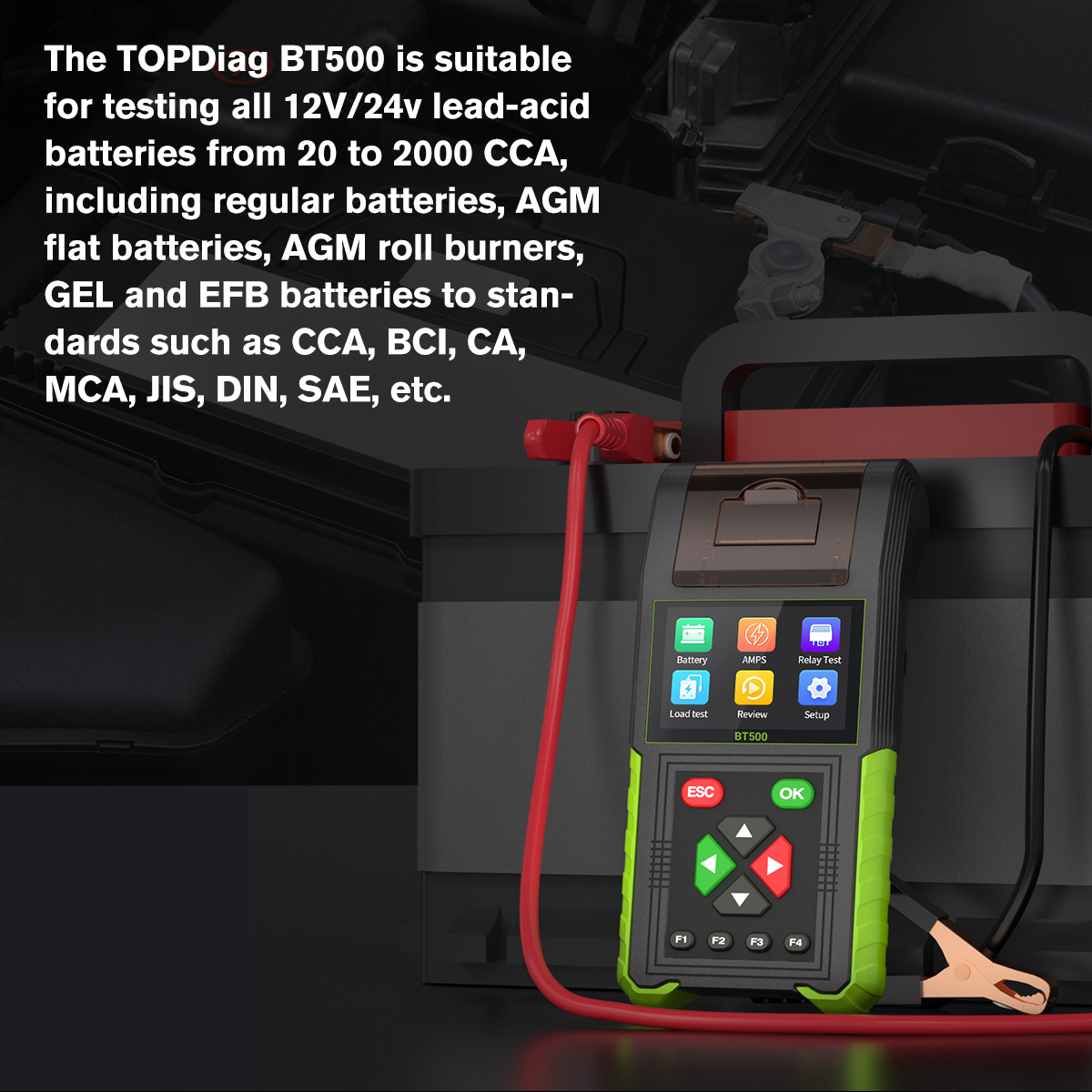

Battery CCA Detection Range: 20 ~ 2000CCA

Supported Specifications: CCA, JIS, GB, SAE, MCA, CA, DIN,

IEC, EN, BCI.

Supports measurement for 12V and 24V batteries.

Built-in self-resetting circuit breaker with cut-off current: 5Amps. If input current exceeds 5Amps,

internal limiting is enforced to 5Amps.

---
