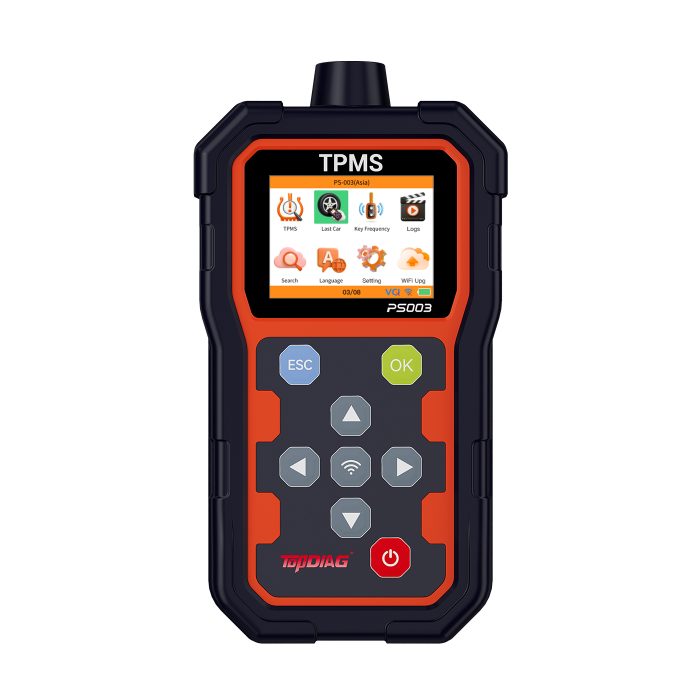

TopDiag PS003 Handheld Tire Pressure Matching Tool offers convenient, efficient, and intelligent wireless transmission with one-click WiFi upgrades. The device supports 315MHz and 433MHz tire pressure sensors. Compatible with multiple vehicle models, covering over 98% of Asian, European, American, and domestic vehicles equipped with tire pressure monitoring systems. It enables rapid tire pressure reading, tire pressure programming, tire pressure learning, and tire pressure sensor activation.

Functions:

Tire Pressure Monitoring   Tire Pressure Activation   Tire Pressure Programming   Tire Pressure Learning   Tire Pressure Matching”

---

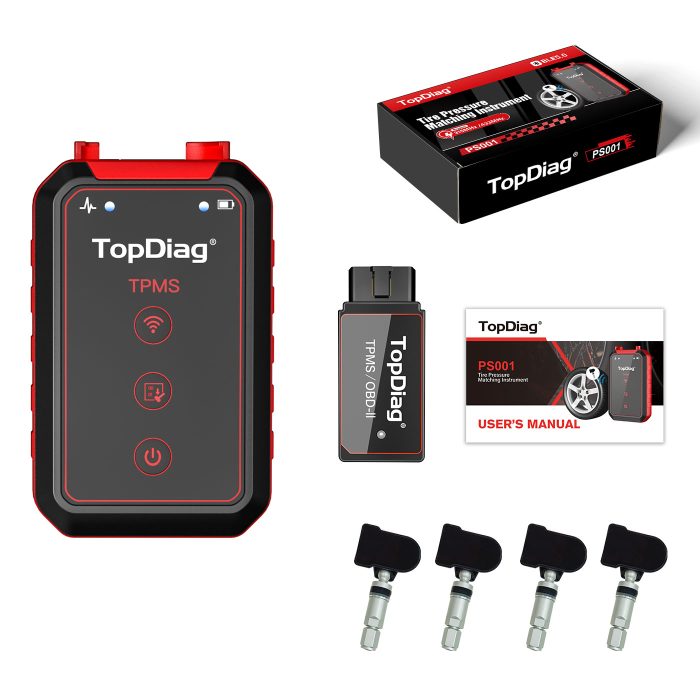

TopDiag ps001 Tire Pressure Matching Tool: Convenient, efficient, wireless transmission, smart app operation. Supports 315MHz and 433MHz tire pressure sensors. Compatible with multiple vehicle models, covering over 98% of Asian/European/American and domestic vehicles equipped with tire pressure monitoring systems. Enables rapid tire pressure reading, tire pressure programming, tire pressure learning, and tire pressure sensor activation.

 Functions:

TPMS Monitoring   TPMS Activation   TPMS Programming   TPMS Learning   TPMS Matching

---

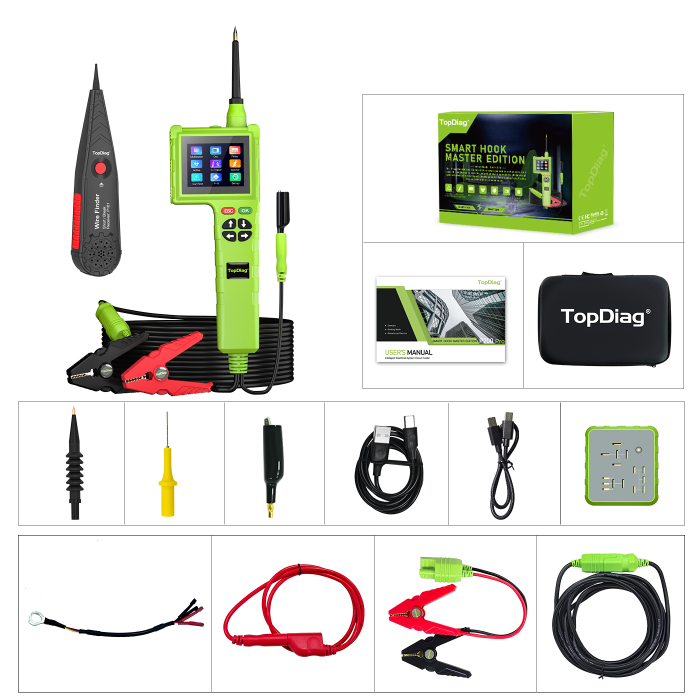

The next-generation enhanced circuit system tester supports operating voltages from 9V to 48V and measures circuit voltages ranging from 2mV to 99.9V. It is widely used in motorcycles, automobiles, trucks, marine vessels, construction machinery, and other fields.

The device features the following functions: leakage detection, fuel injector testing and cleaning, component activation, relay testing, multimeter functionality, oscilloscope functionality, and low-voltage power supply capability.

Leakage detection records up to 55 leakage current readings over one hour with playback capability. Supports fuel injector signal simulation output, signal acquisition and parameter analysis, waveform plotting, and injector cleaning. Includes a dedicated relay test box for streamlined relay diagnostics.

Supply Voltage: 12V/24V

Operating Voltage: 9V-48V

Test Frequency Range: 1Hz-1MHz

Circuit Voltage Range: 2mV-99.9V

Resistance Range: 0.01Ω-10MΩ

Leakage Current Range: 10mA-25A

---

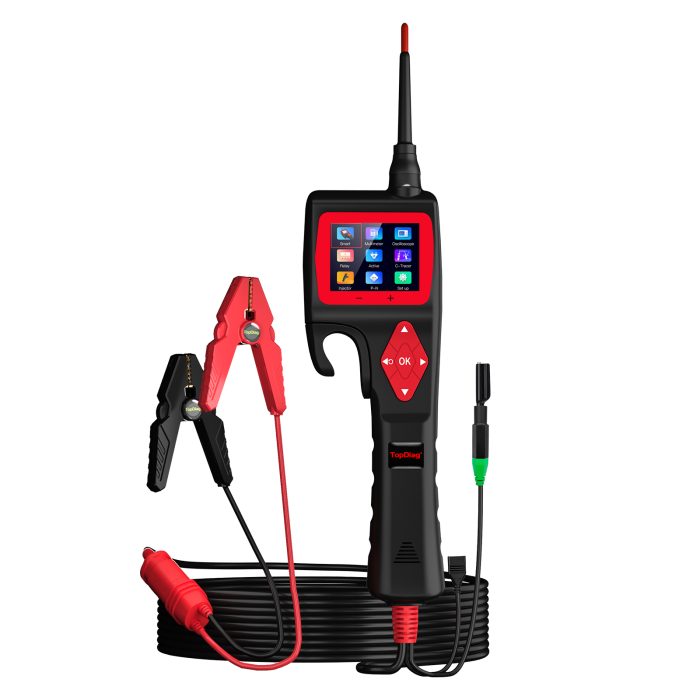

The P200 SMART HOOK Power Probe is the next-generation intelligent circuit analyzer and the only upgradeable circuit tester on the market. It’s the tool for rapid testing of all 9V-30V electronic systems. Significantly reduces testing time—convenient, fast, and smart!

1. Intelligent voltage/resistance recognition;

2. Multimeter mode (measures voltage, resistance, diodes, continuity, current, and frequency);

3. Relay testing;

4. Fuel injector testing;

5. Diode testing;

6. Oscilloscope function;

7. 0-5V adjustable power supply;

8. Vehicle component activation;

9. Positive/negative polarity testing;

10. Smart circuit breaker protection (adjustable overload)

11. Selectable screen style backgrounds;

12. Online firmware upgrades;

13. Built-in multilingual support.

Languages:

English, Spanish, German, French, Portuguese, Italian, Polish, Vietnamese, Russian, Thai, Indonesian, Malay, Filipino, Arabic

---

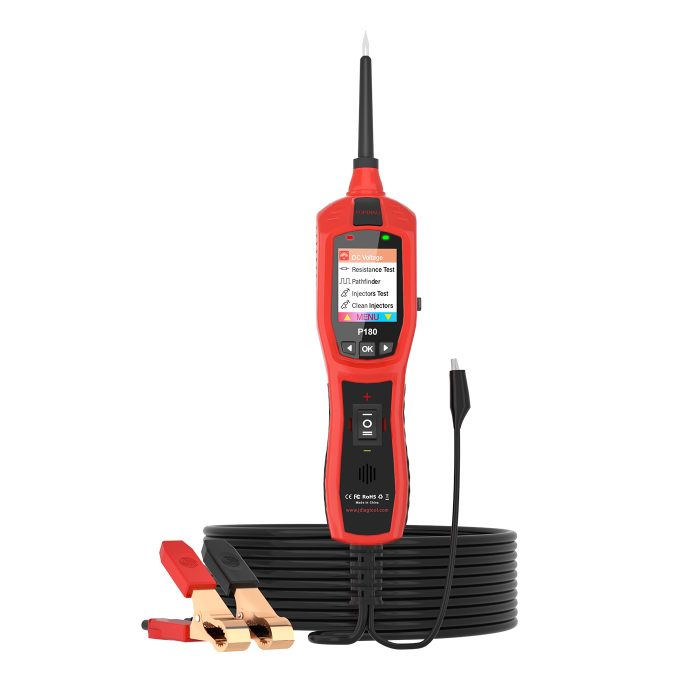

The P180 features new functions including breakpoint location, battery diagnostics, and AC testing. It is the optimal electrical tester for diagnosing all 6-30V vehicle electrical systems, offering simple operation and broad practicality.

Features:

1. Breakpoint Locator 2. Battery Diagnostics 3. Fuel Injector Signal Testing 4. Fuel Injector Cleaning 5. Smart Circuit Breaker 6. Frequency Measurement 7. DC Voltage Measurement 8. AC Voltage Measurement (RMS) 9. AC Voltage Measurement (RMS) 10. Resistance Measurement 11. Diode Test 12. Flashlight

Operating Voltage: 6-30V

Display: TFT Color Screen (160*128 DPI)

---

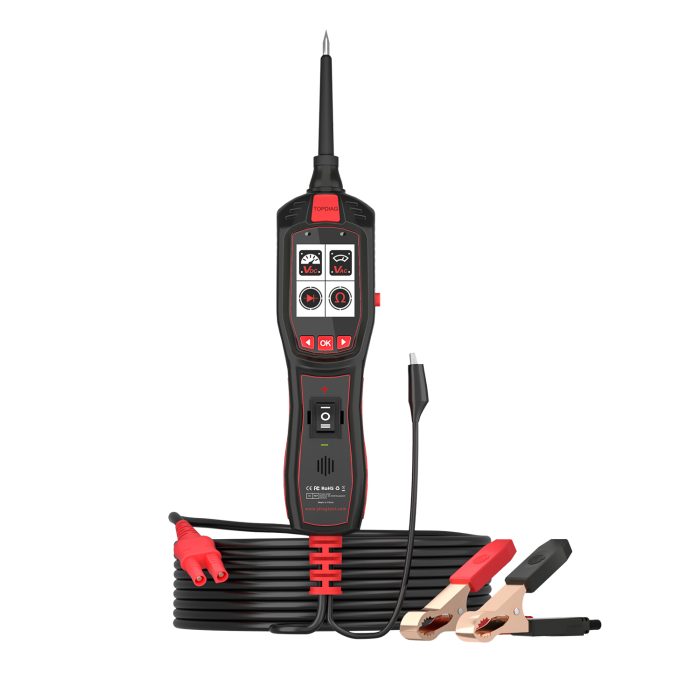

The P150 is the ultimate electrical tester for diagnosing all 6-30V vehicle electrical systems, featuring simple operation and broad applicability. Newly upgraded smart open-circuit detection ensures safer usage.

Features:

1. Fuel Injector Signal Detection    2. Smart Open-Circuit Detection  3. Frequency     4. Duty Cycle  5. DC Voltage    6. AC Voltage    7. Resistance    8. Diode    9. Flashlight    10. Smart Test

Operating Voltage: 6-30V

Display: TFT Color Screen (160*128 DPI)

---

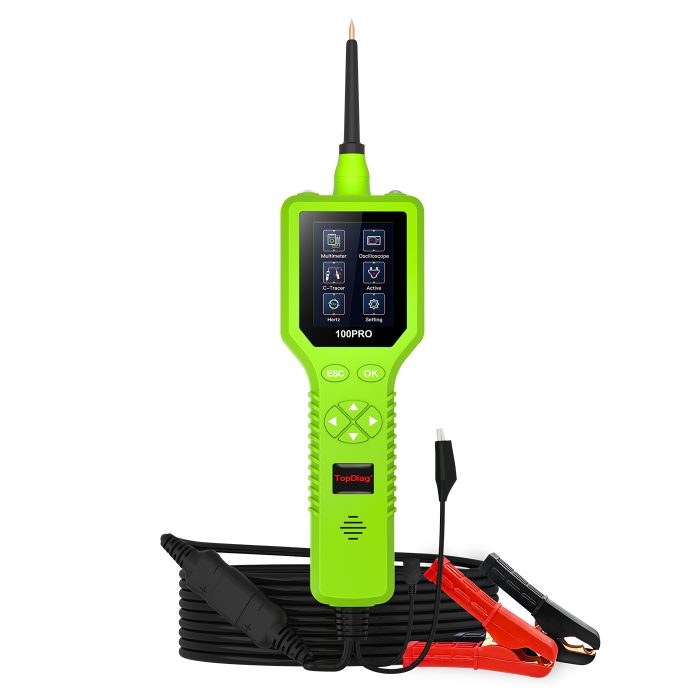

The P100 Pro is a highly cost-effective, efficient automotive circuit diagnostic tester—a highly integrated, vehicle-specific testing instrument.

Features:

1. Intelligent voltage/resistance recognition

2. Multimeter mode (measures voltage, resistance, diodes, continuity)

3. Oscilloscope function

4. Vehicle component activation

5. Adjustable 0-5V Power Supply

6. Frequency Measurement

7. Free Online Software Updates

8. Built-in Multi-Language Support

Languages:

English, Spanish, German, French, Portuguese, Italian, Polish, Vietnamese, Russian, Thai, Indonesian, Malay, Filipino, Arabic

---

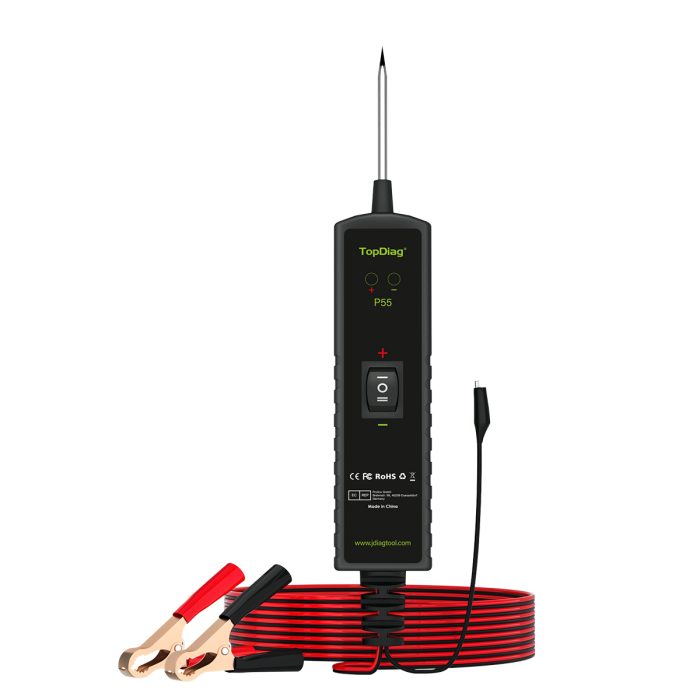

P55 Automotive ECU Activator, suitable for diagnosing 12-24V automotive power circuits. Compact design with powerful functionality, featuring reverse polarity and overload protection. Its probe can test conductivity, detect positive/negative polarity, activate components, and more. It rapidly identifies shorts, open circuits, or poor contacts in vehicle electrical components, enabling users to diagnose issues faster and more accurately. This efficient, advanced testing tool significantly boosts work efficiency.
Functions: Component Activation Continuity Testing Ground Detection Short Circuit Tracking & Localization Positive/Negative Polarity Detection
Supply Voltage DC: 12-24V
Operating Current: 80mA
Activation Current: 0-8A

---
