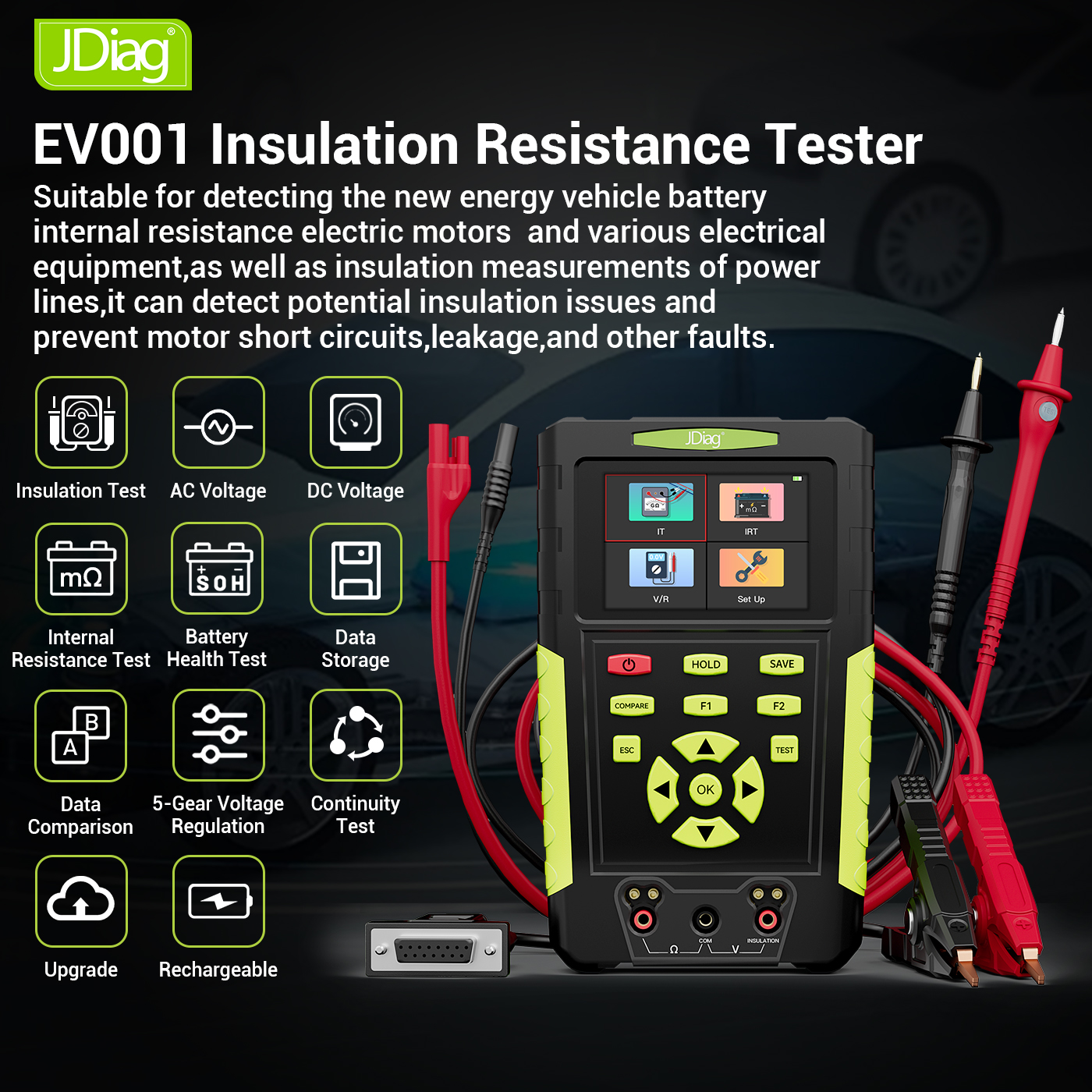

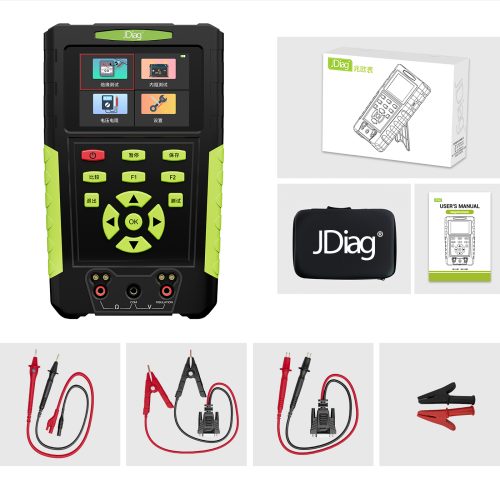

Jdiag EV001 3-in-1 Multifunctional Insulation Tester

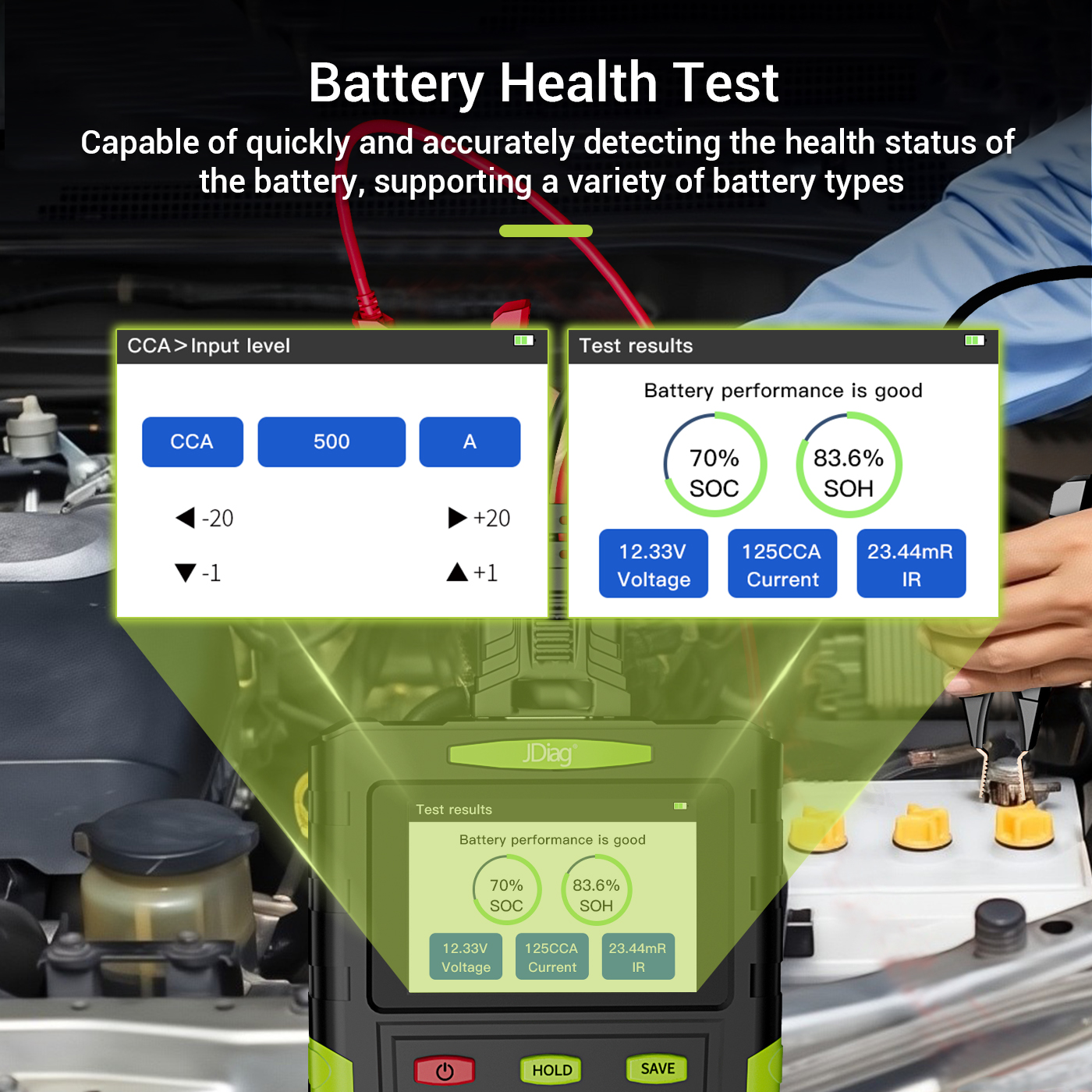

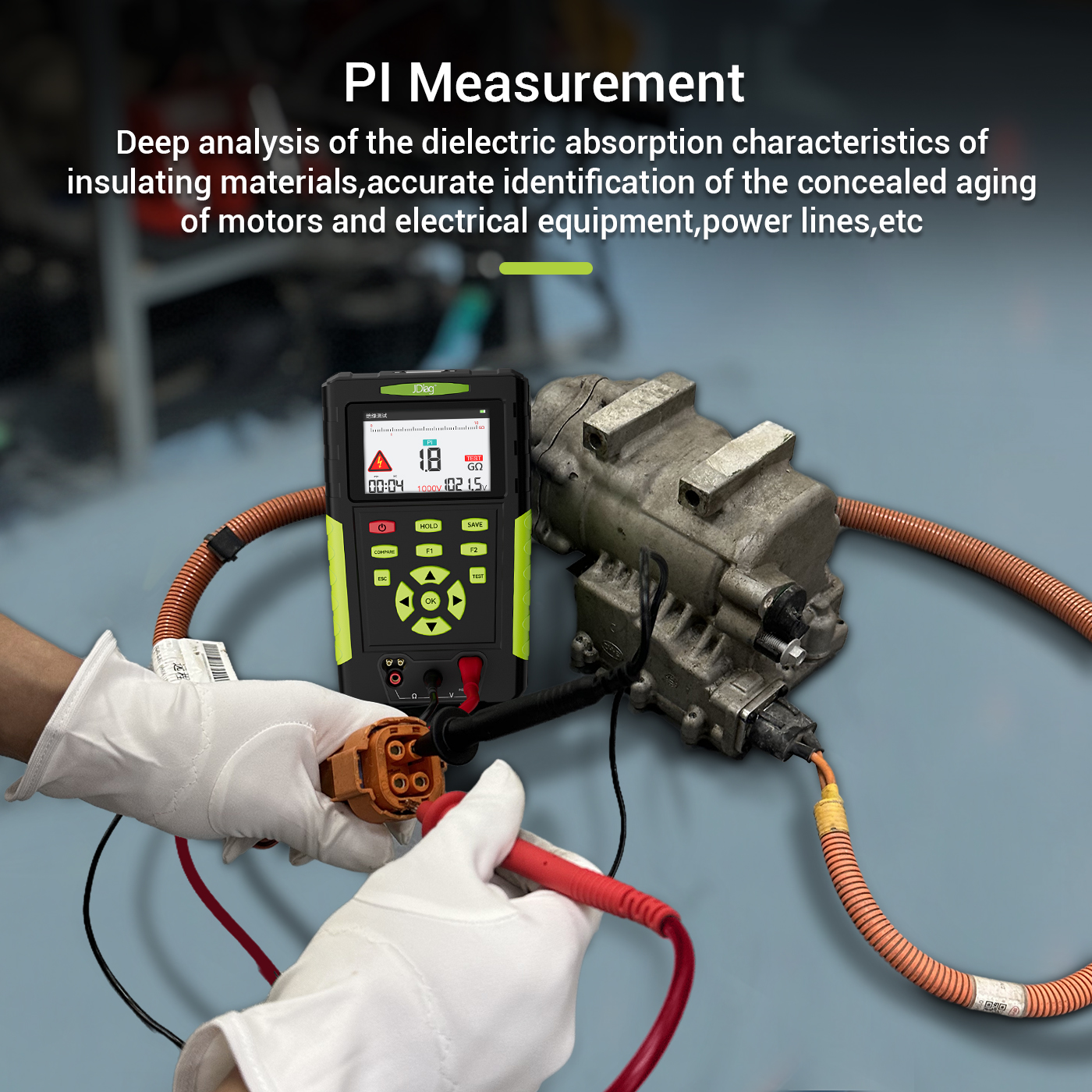

Three-in-One Multifunctional Insulation Tester with five adjustable voltage levels. Capable of rapidly testing insulation resistance in new energy vehicle electrical equipment, high-voltage circuits, and large-scale industrial equipment high-voltage cables. Accurately measures battery internal resistance and analyzes battery health status, making it the optimal choice for servicing new energy vehicles.

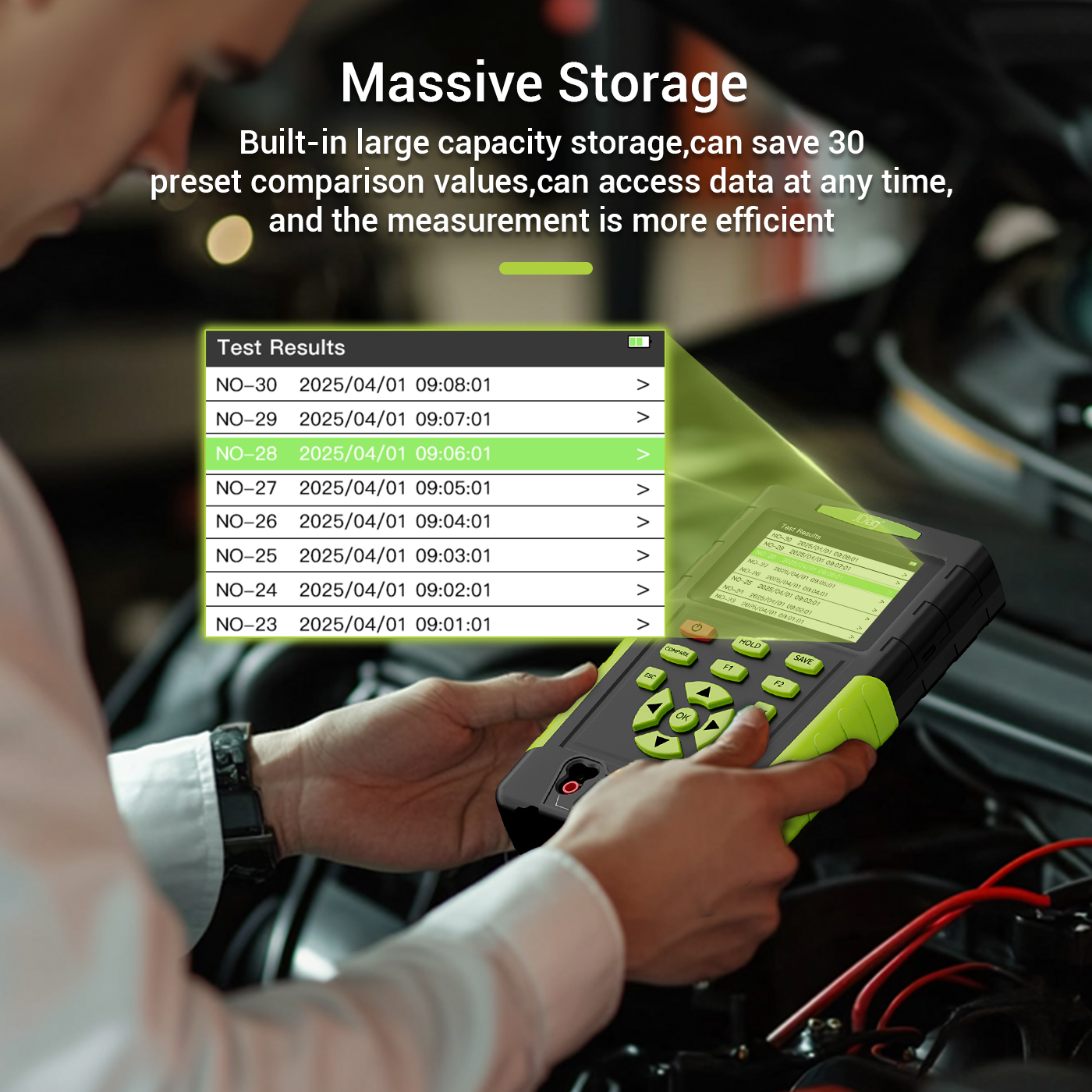

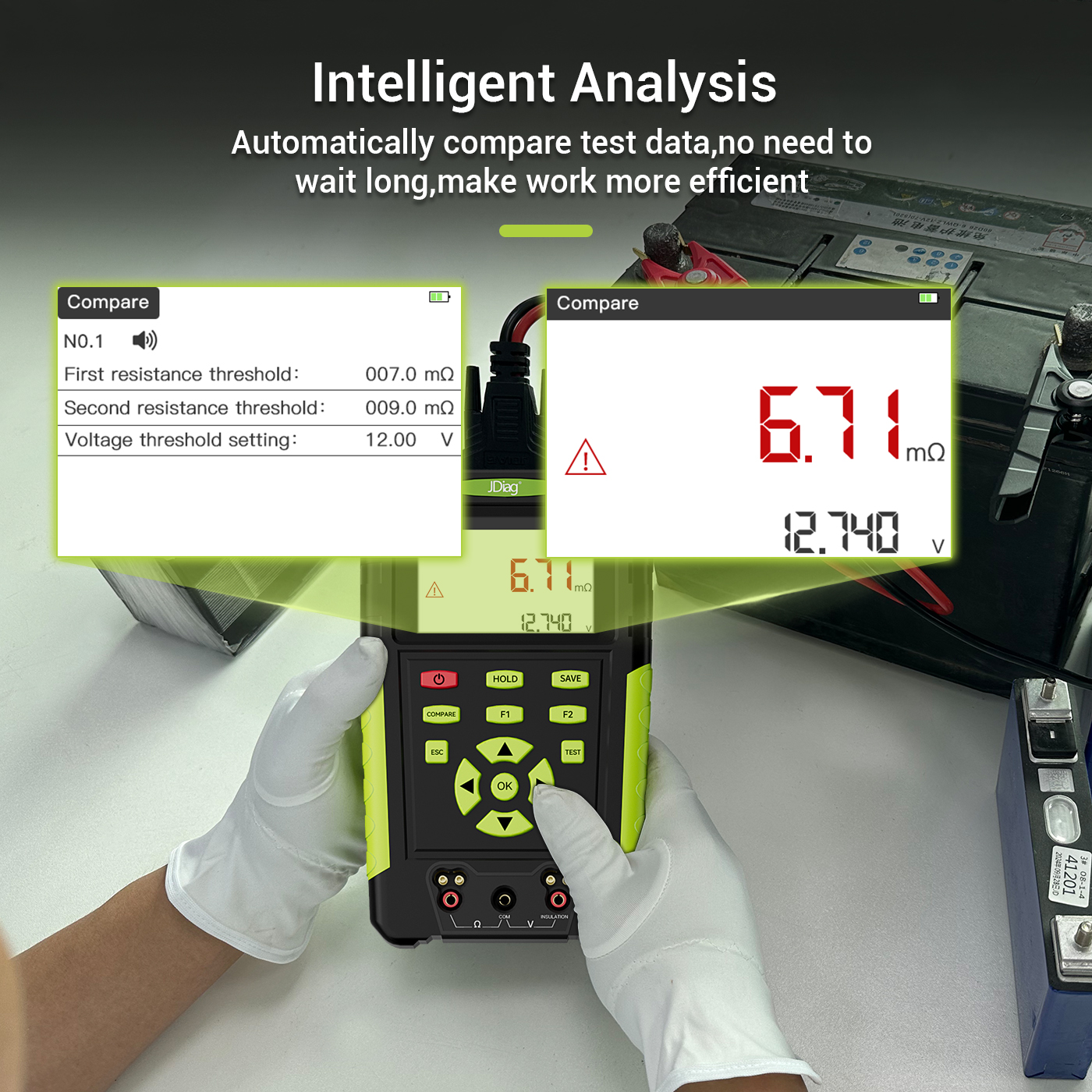

Functions: Insulation Resistance Testing    Battery Internal Resistance Testing    Battery Health Monitoring    Voltage Detection    Resistance Measurement    Data Storage    Comparison

Product Specifications:

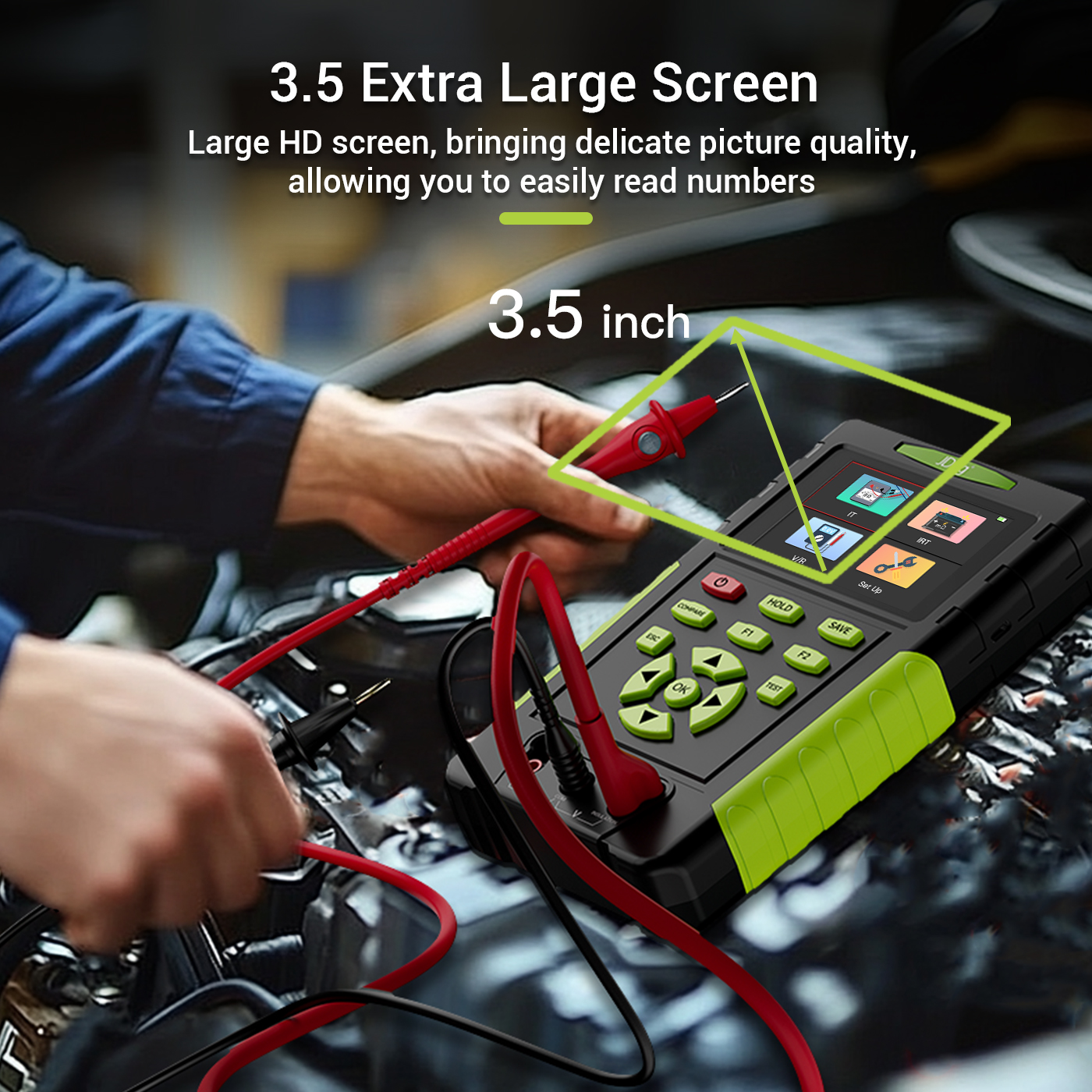

Display: 3.5-inch TFT Color Screen

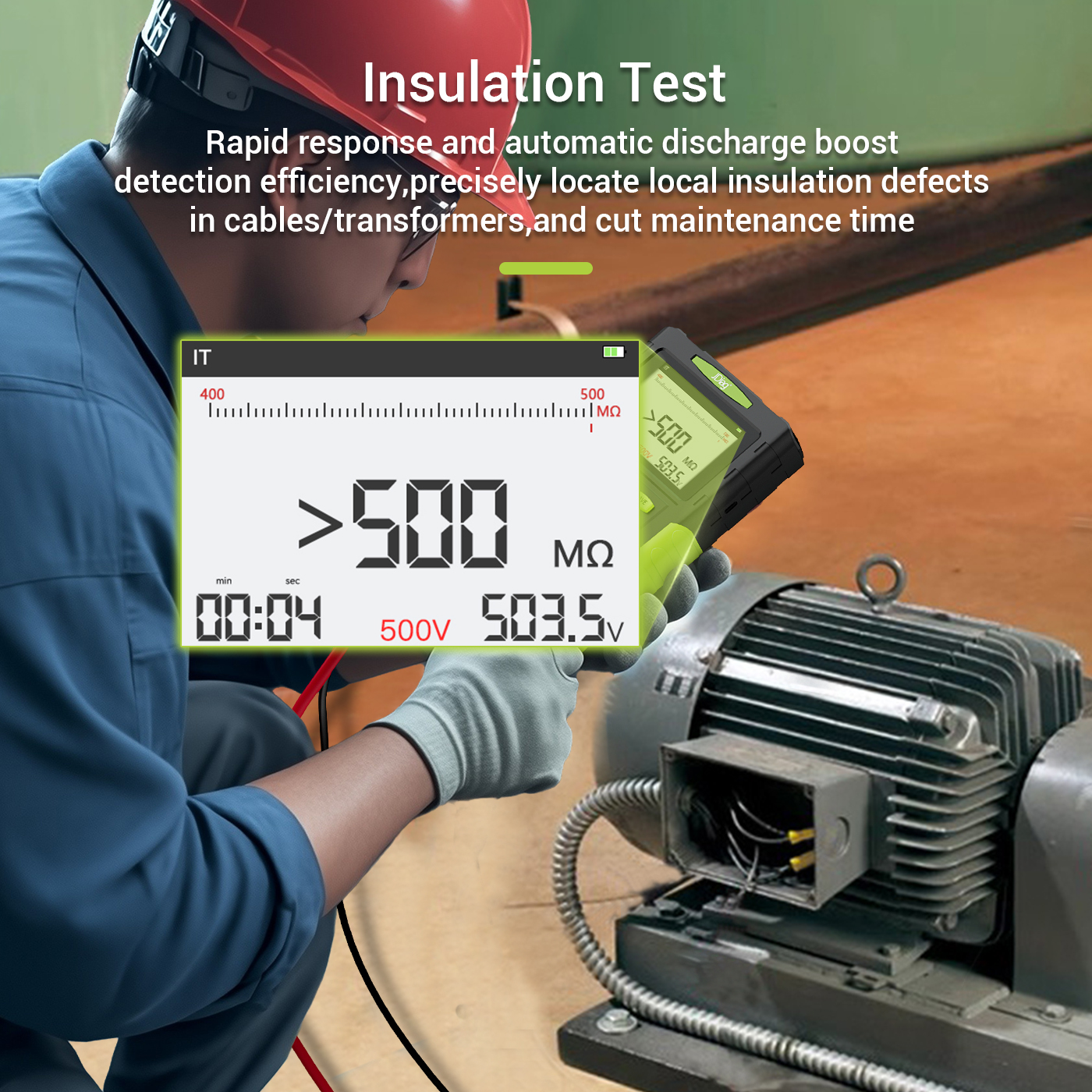

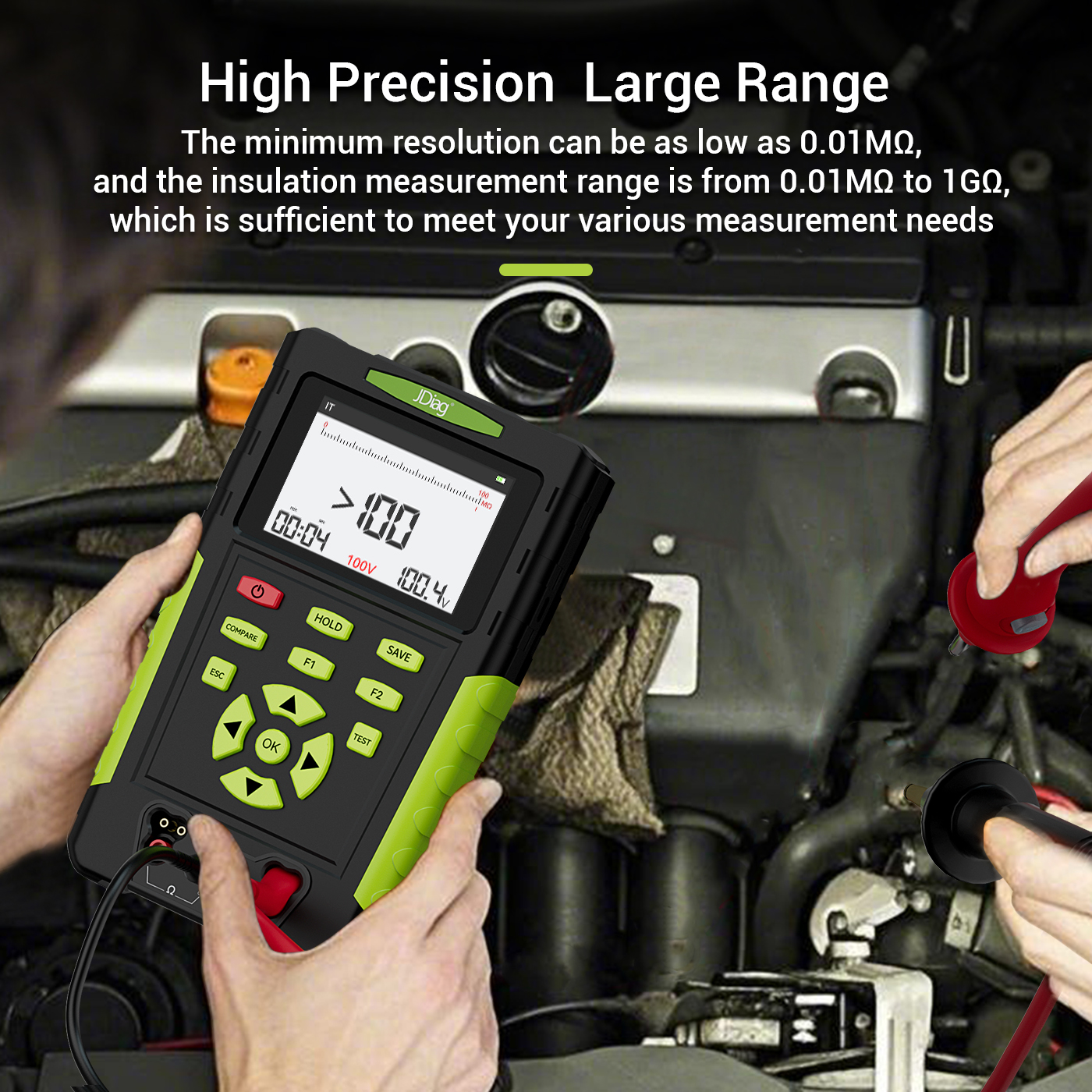

Insulation Resistance Measurement Range: 0.01MΩ ~ 10GΩ

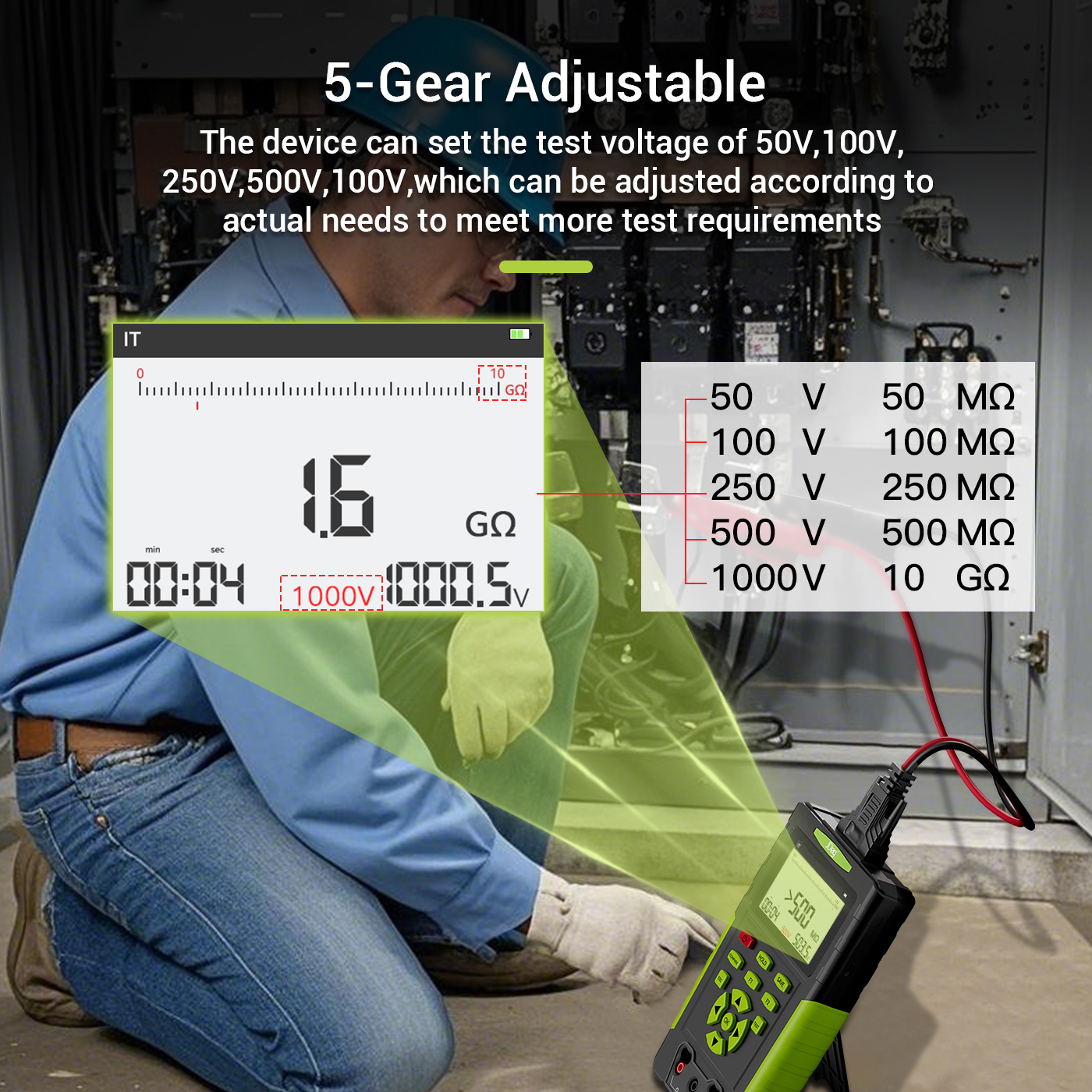

Insulation Voltage Output Levels: 50V, 100V, 250V, 500V, 1000V

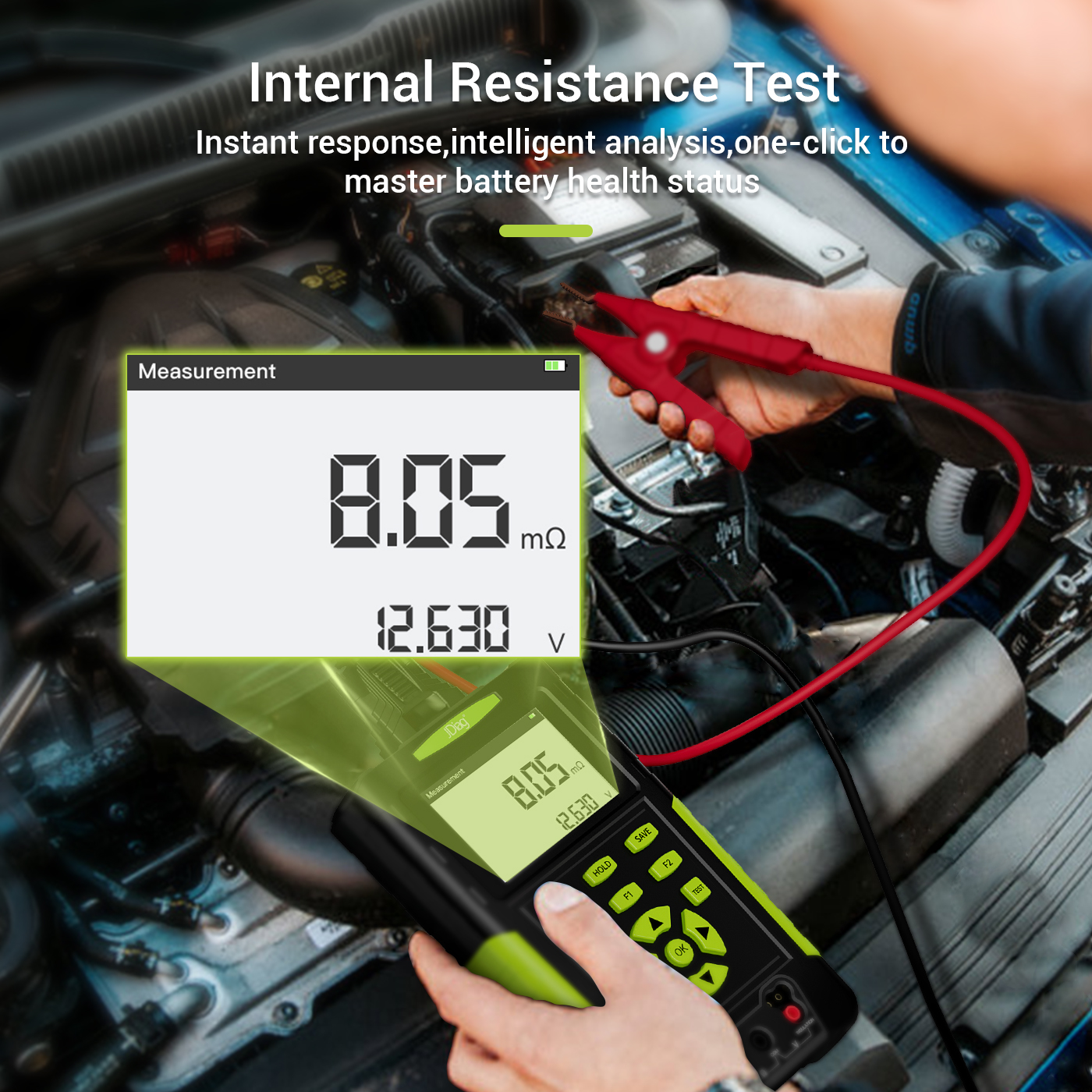

Battery Internal Resistance Measurement Range: 0.1mΩ ~ 199.99Ω

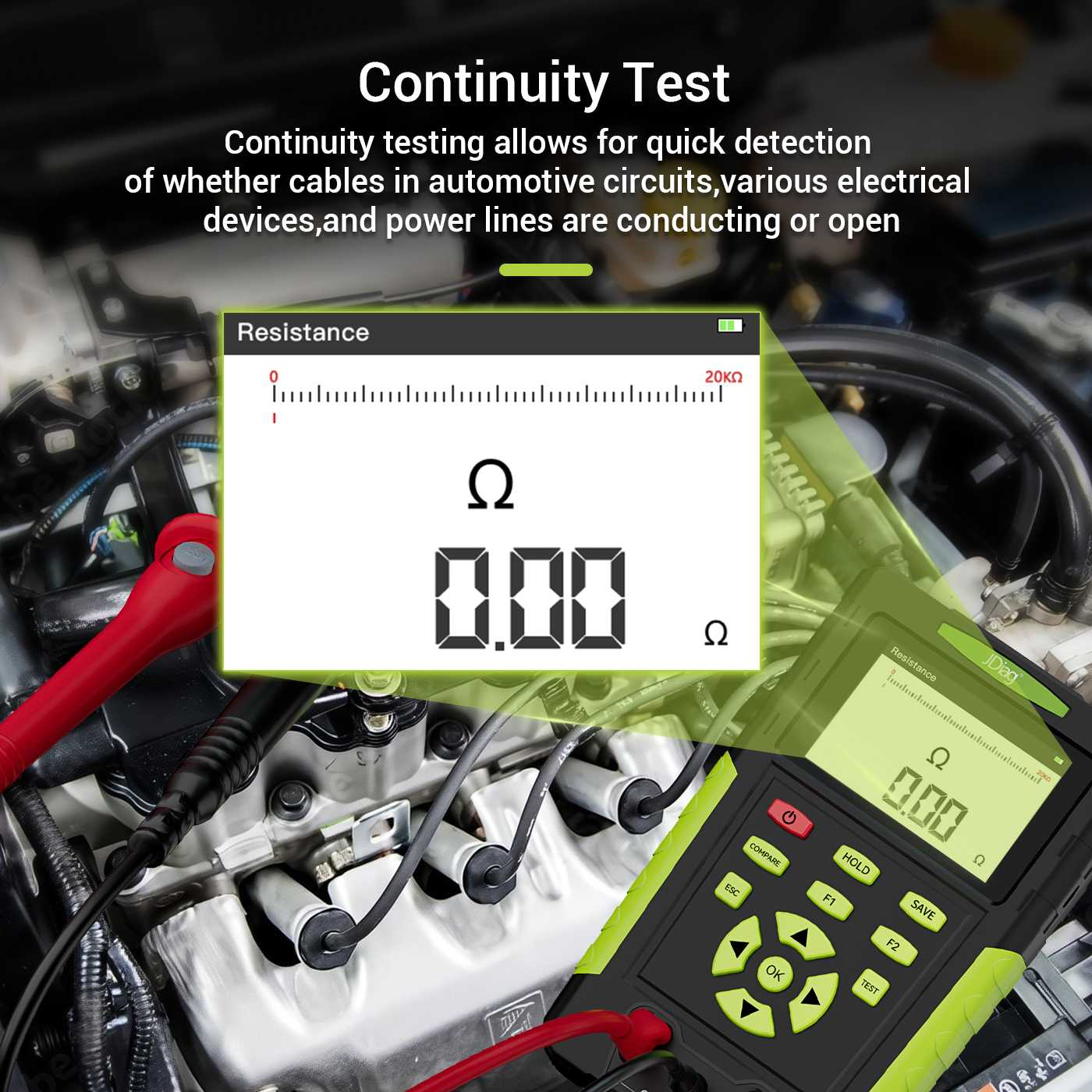

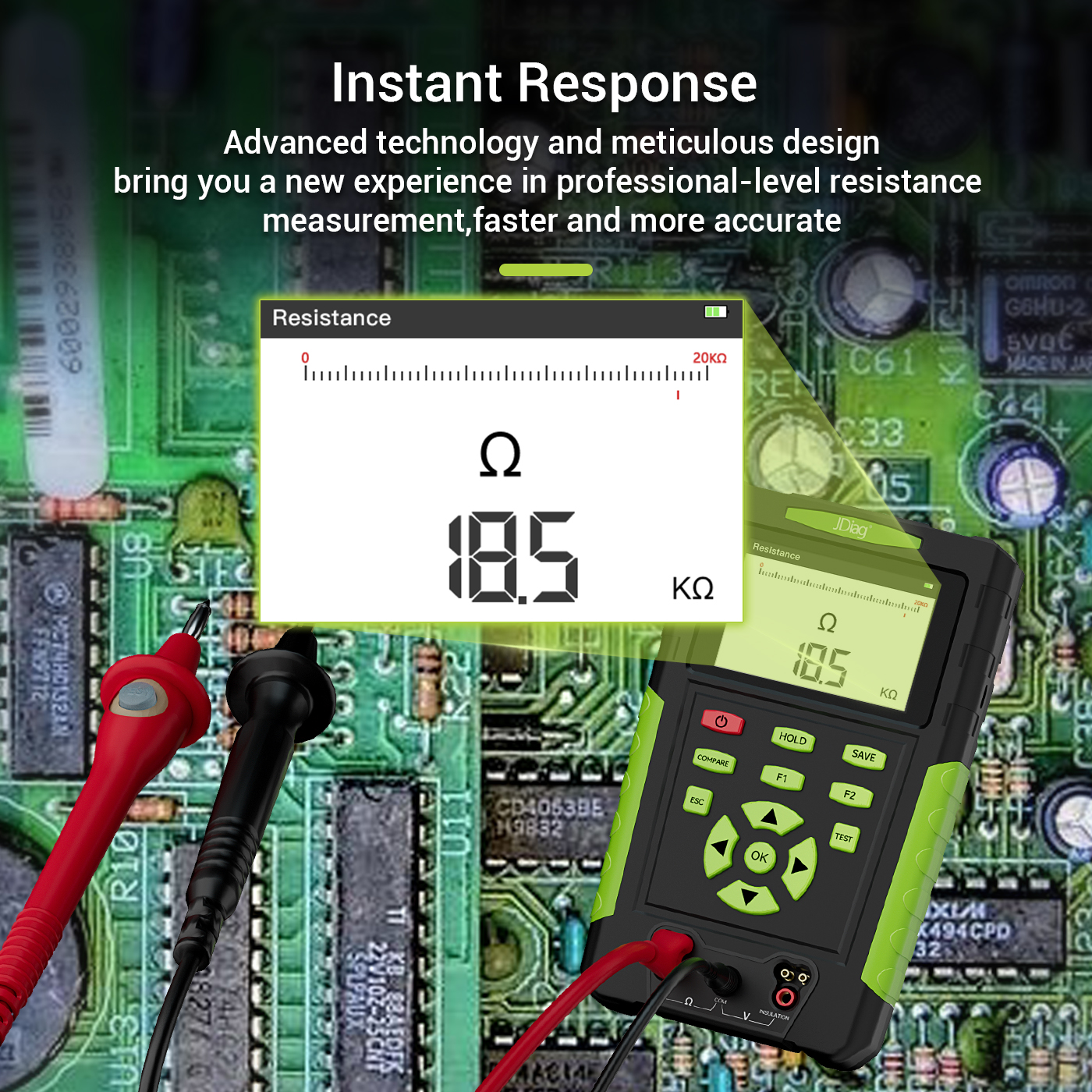

Resistance Measurement Range: 20.00Ω ~ 20.00kΩ

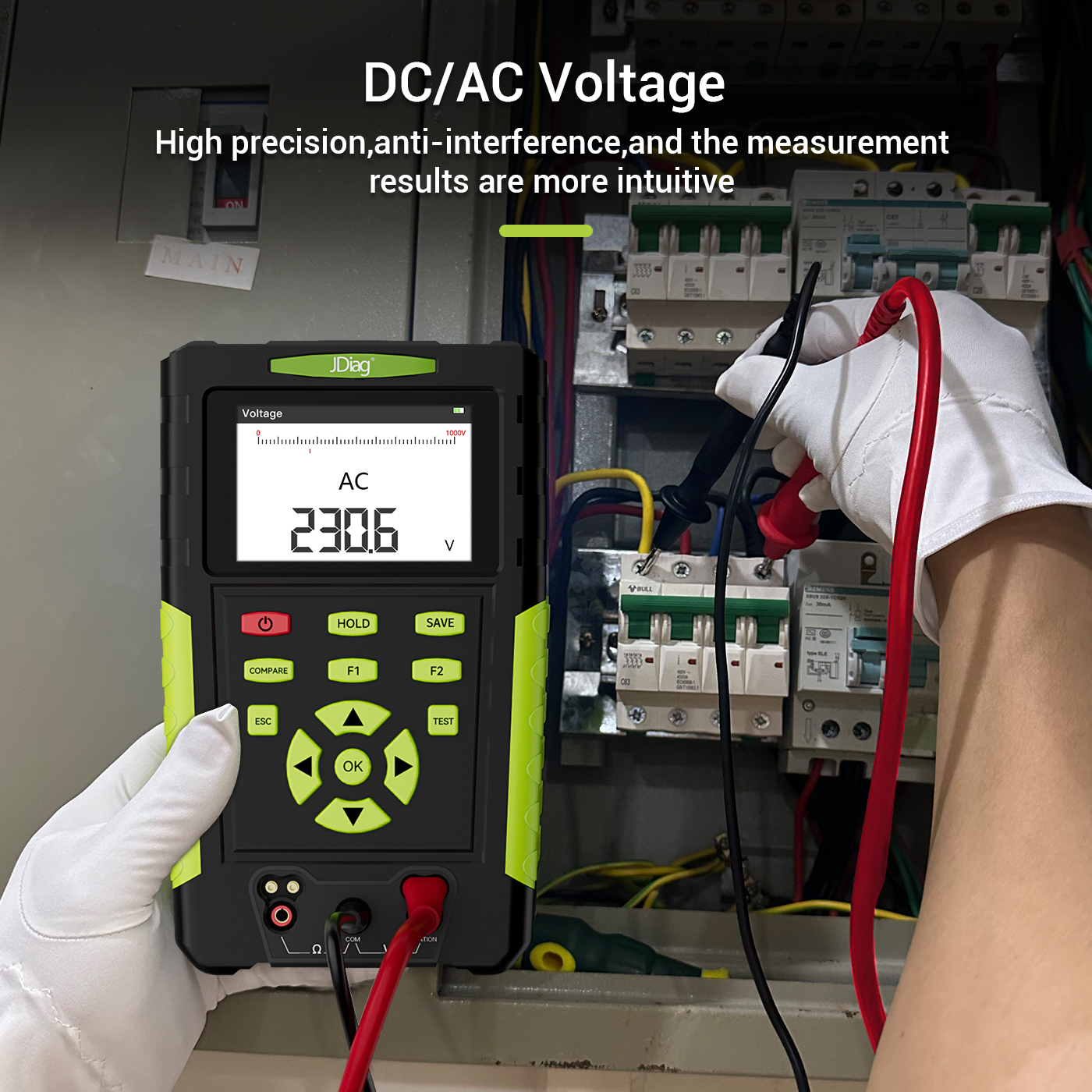

DC Measurement Range: 1V ~ 1000V

AC Measurement Range: 1V ~ 750V

CCA Measurement Range: 20 CCA ~ 2000 CCA

AH Measurement Range: 10 AH ~ 300 AH

Test Standards: CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI

---
