TopDiag P200 PRO Circuit Tester

The next-generation enhanced circuit system tester supports operating voltages from 9V to 48V and measures circuit voltages ranging from 2mV to 99.9V. It is widely used in motorcycles, automobiles, trucks, marine vessels, construction machinery, and other fields.

The device features the following functions: leakage detection, fuel injector testing and cleaning, component activation, relay testing, multimeter functionality, oscilloscope functionality, and low-voltage power supply capability.

Leakage detection records up to 55 leakage current readings over one hour with playback capability. Supports fuel injector signal simulation output, signal acquisition and parameter analysis, waveform plotting, and injector cleaning. Includes a dedicated relay test box for streamlined relay diagnostics.

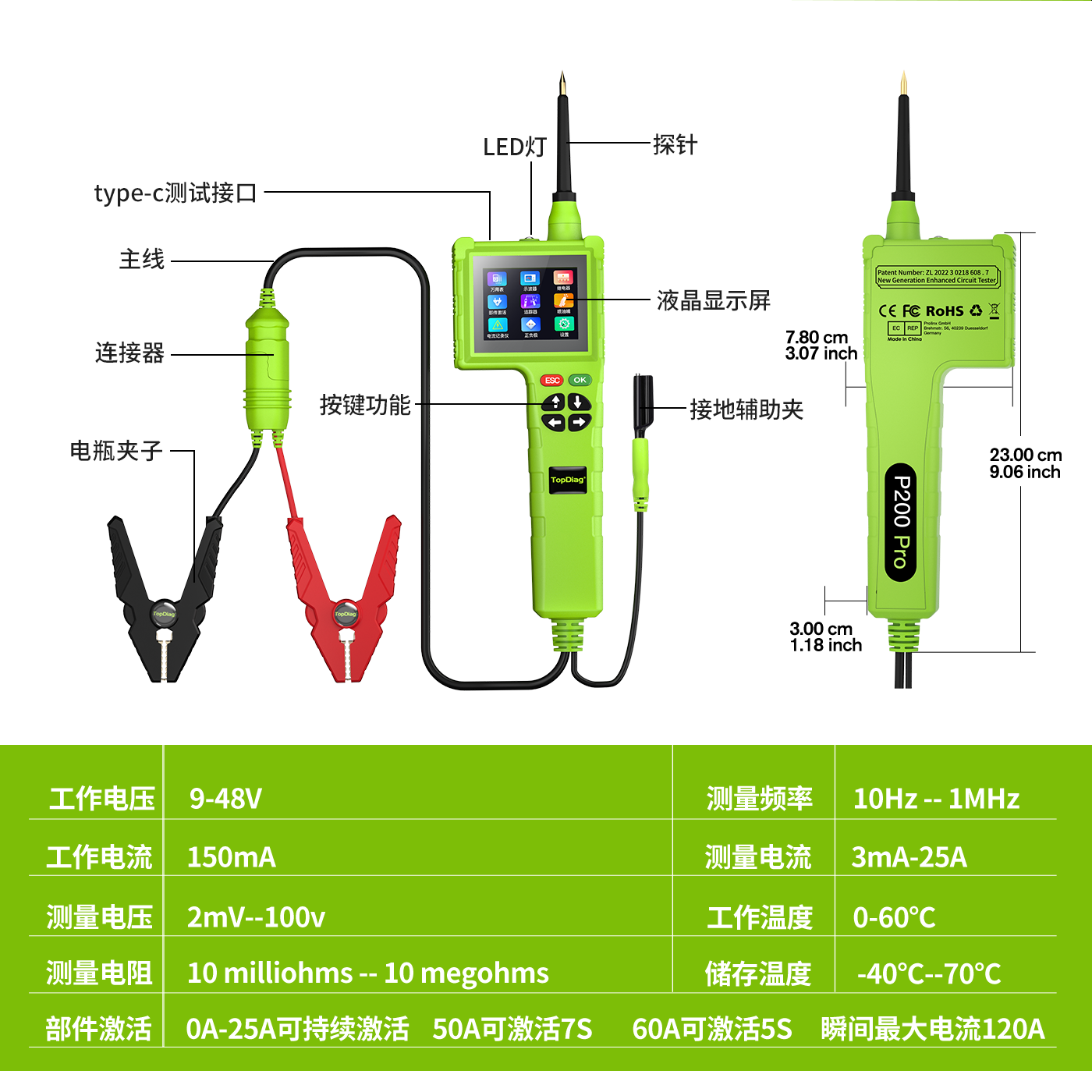

Supply Voltage: 12V/24V

Operating Voltage: 9V-48V

Test Frequency Range: 1Hz-1MHz

Circuit Voltage Range: 2mV-99.9V

Resistance Range: 0.01Ω-10MΩ

Leakage Current Range: 10mA-25A

---
